Strata Motor
Strata Motor
------ RS - 755 H
------ RS - 775 H

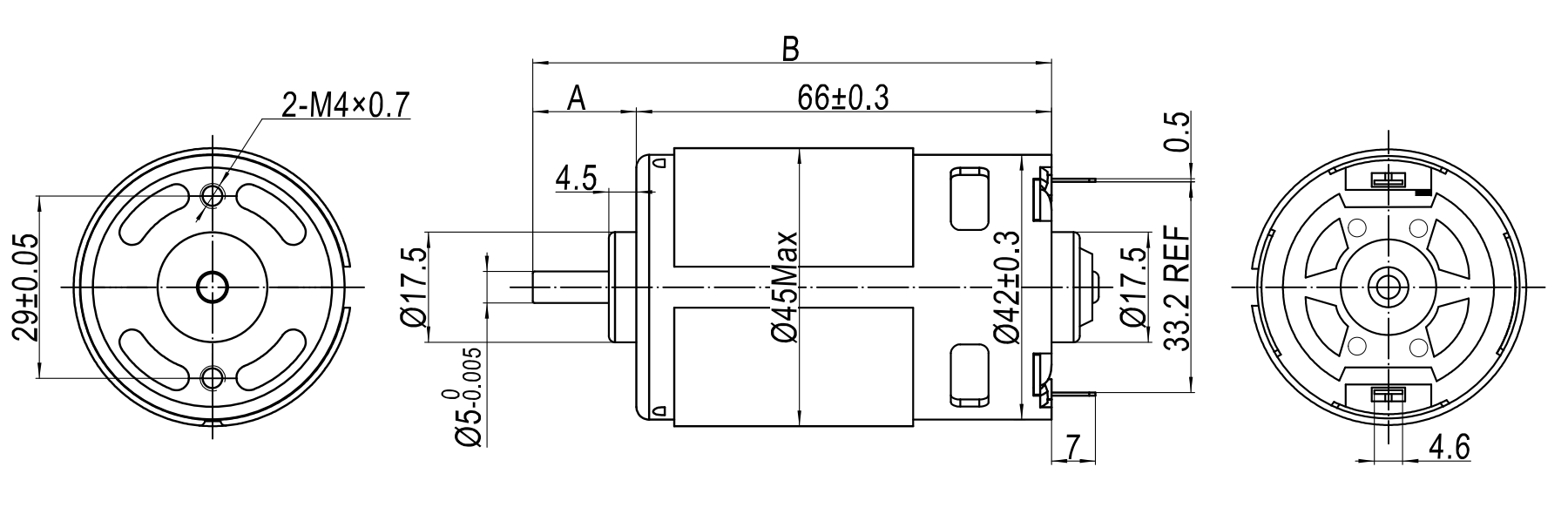

The length of shaft can be customized.
| Model | Rated Voltage (V) | No-Load | Rated | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | |
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | |||
| RS-750H | 6.0~12.0 | 12 VDC | 15000 | 1.79 | 12671 | 7.52 | 48.6/496 | 66.6 | 55.6 | 393.1/4010 |
| RS-755H | 3.0~6.0 | 6 VDC | 9500 | 2.26 | 8123 | 9.31 | 45.1/460 | 38.2 | 66.34 | 306.9/3130 |
We are a factory specializing in producing motors for more than 14 years. With three specialized factories, our professional R&D team, mature management, and experienced engineers ensure a superior product experience.
To ensure premium quality, every step from material receipt to shipment is carefully checked. Quality is the foundation of our development.
High Credibility
100% On-time Delivery
Fast Prototyping
Timely Reply
Looking forward to your feedback!
