SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

1 / 4

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

Send Inquiry

Product Description

📦 Product Description

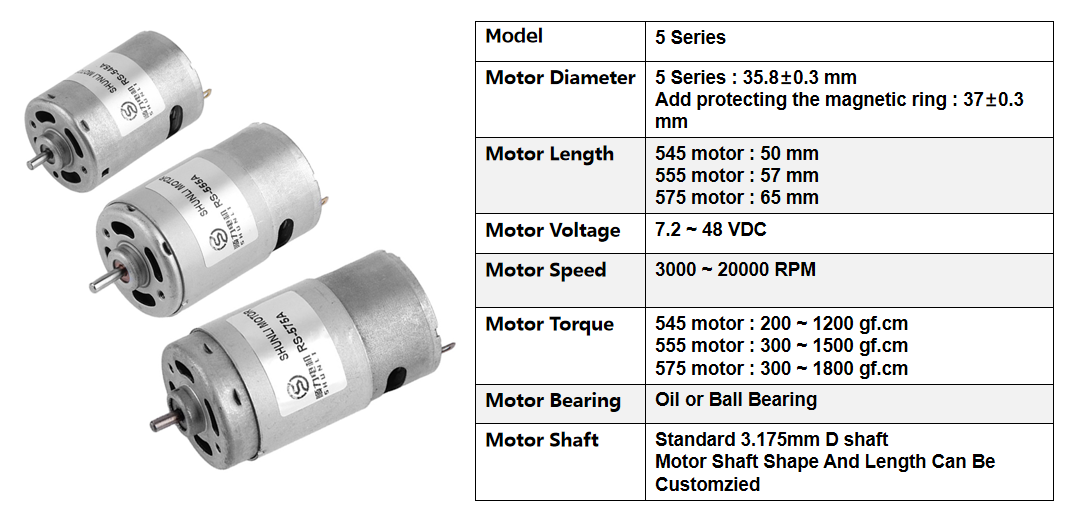

SRS-555 12v 24v micro dc motor for water pump

⭐ Motor Customized Specification Available

📐 Reference Drawing

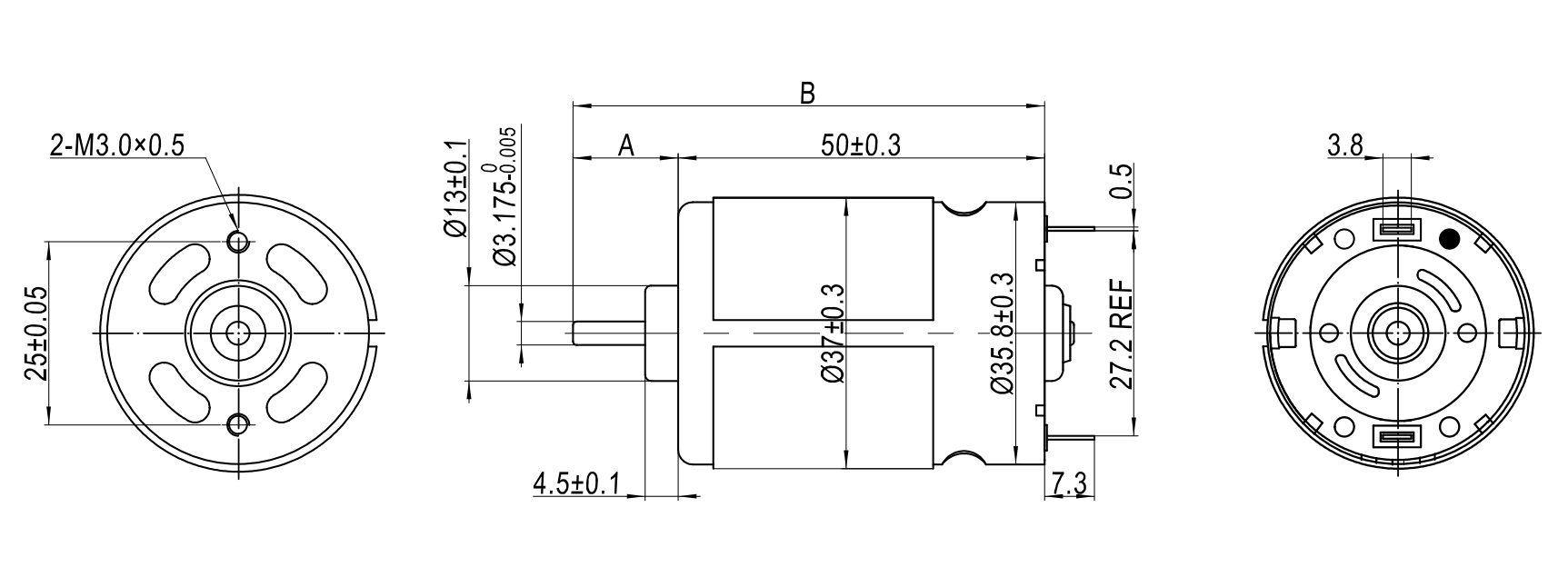

Model: RS - 545 A RS-545 A Drawing

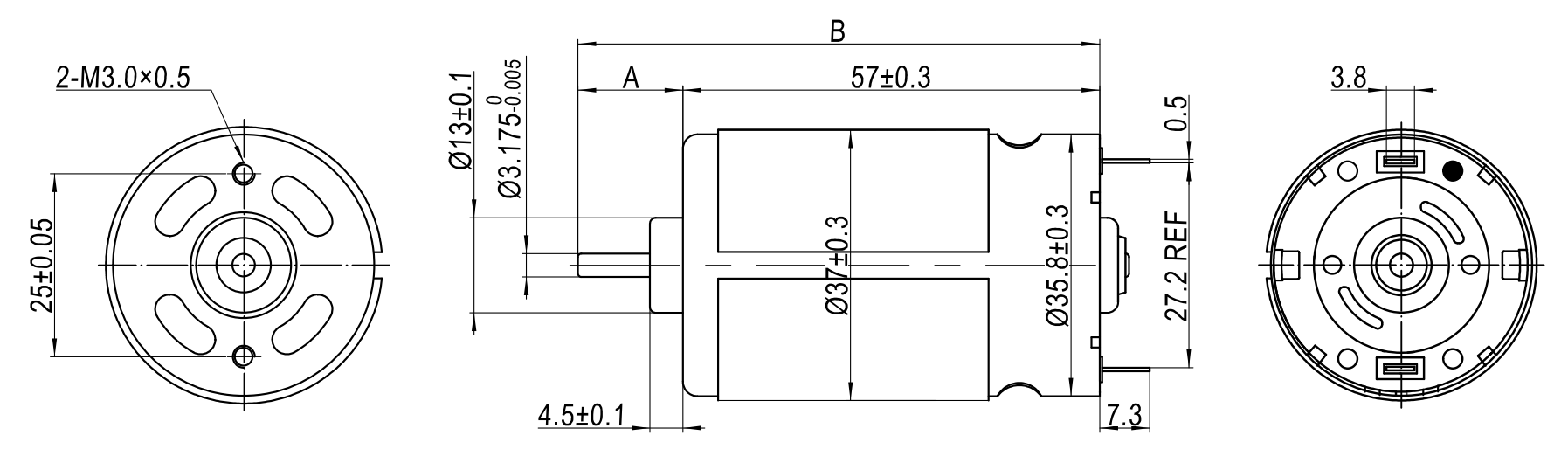

Model: RS - 555 A RS-555 A Drawing

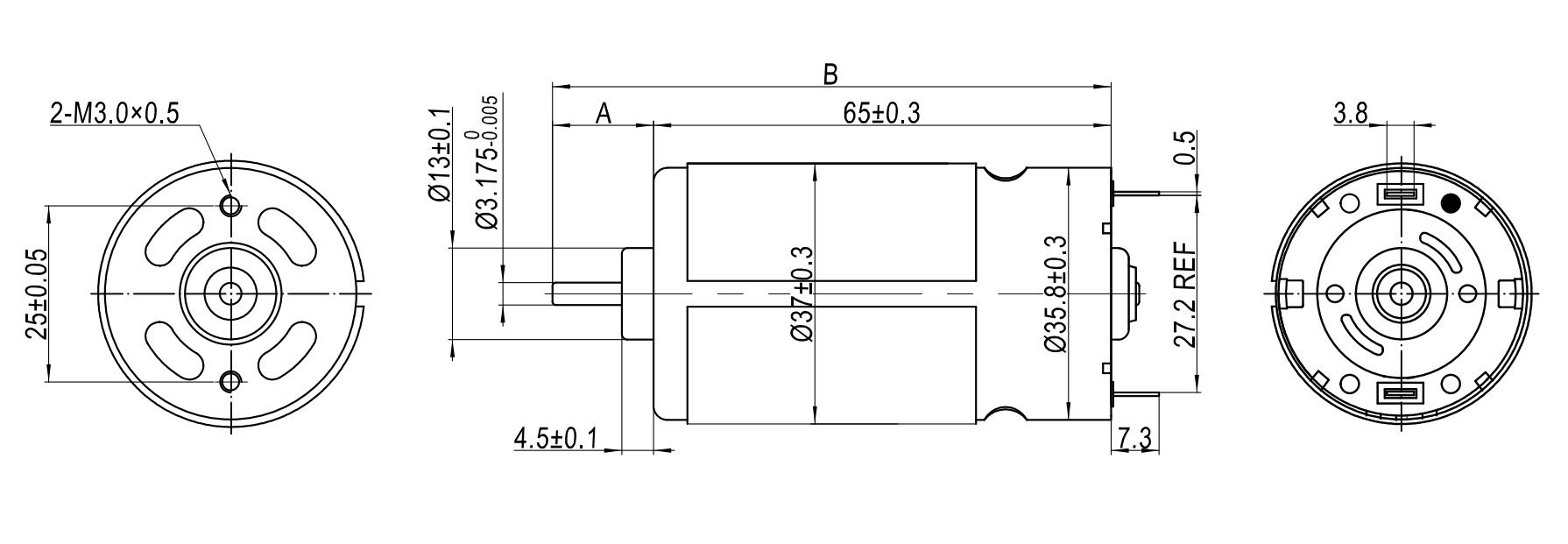

Model: RS - 575 A RS-575 A Drawing

✨ The length of shaft can be customized

📊 Technical Data

Model		Rated Voltage (V)		No-Load		Rated				Stall
Series	Sub-type	Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)	Current (A)	Torque (mN.m)
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7	10.6	4.8	204
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6	40.36	48.89	281.4
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9	15.35	11.31	156
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2	12.09	4.2	124.5

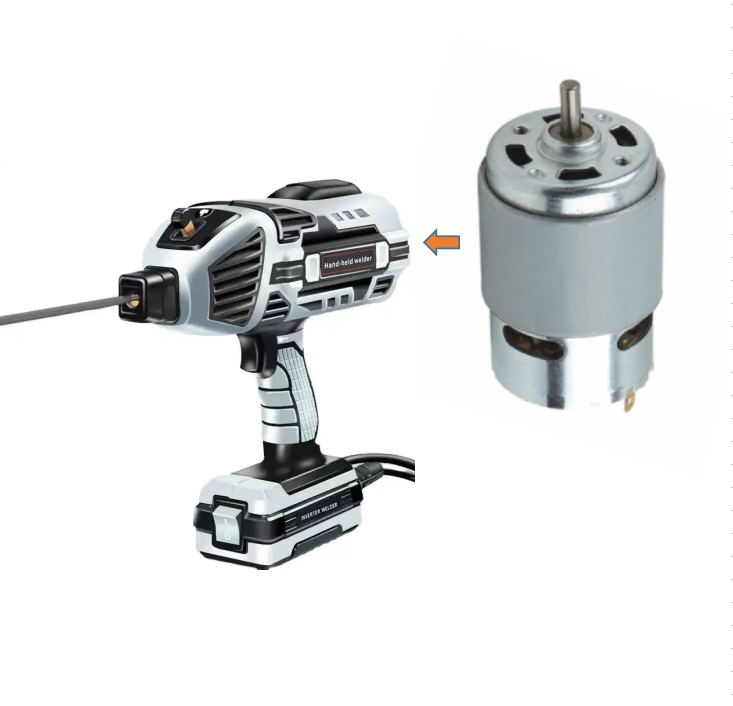

🚀 Product Application

📜 Certifications

❓ Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a factory specializing in micro DC motors and DC gear motors with over 14 years of industry expertise.

What payment terms are available for new customers?

We support online payments via Master Card, Visa through assurance orders, as well as PayPal and TT transfers.

Can you customize a motor if I can't find a suitable one on the website?

Yes, we can customize motors according to specific requirements, including voltage, speed, and shaft dimensions.

Do your motors carry official certifications?

Yes, our motors are compliant with CE, FCC, and ISO standards. We can apply for other specific certificates upon request.

How do you ensure product quality?

We employ professional inspection staff at every stage. Finished products undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers.

Is technical support provided for motor integration?

Yes, our technical team provides professional guidance to ensure the motor fits your application perfectly.
