Home > DC Motor > Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

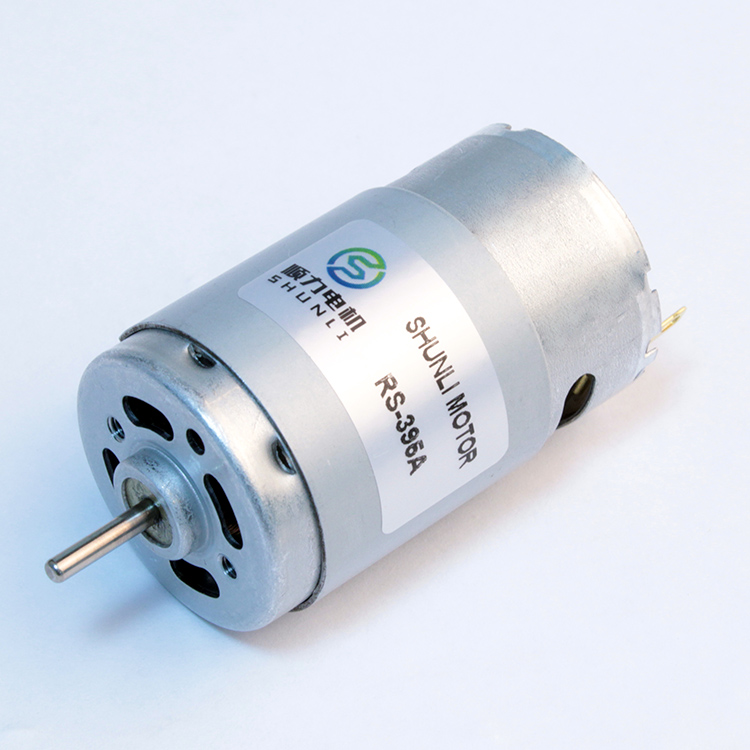

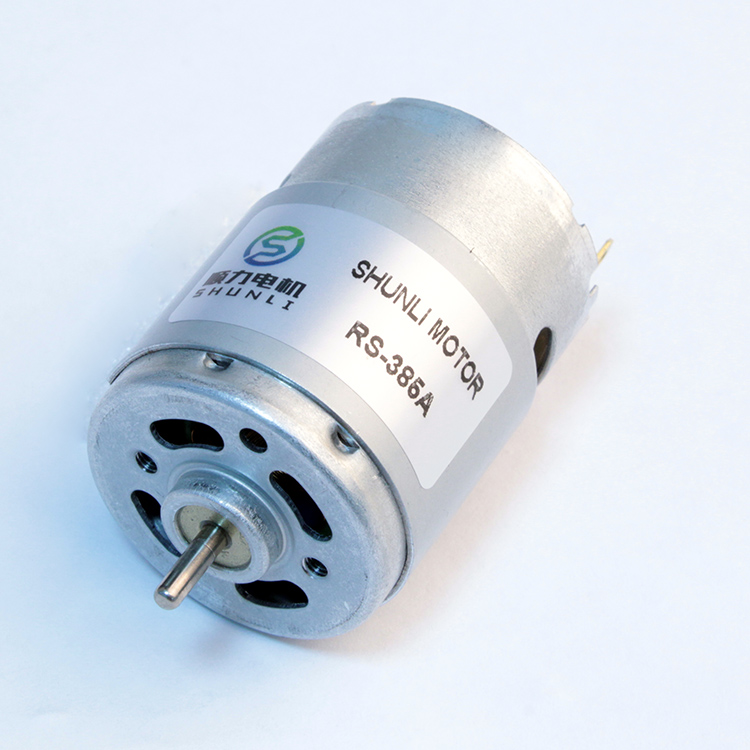

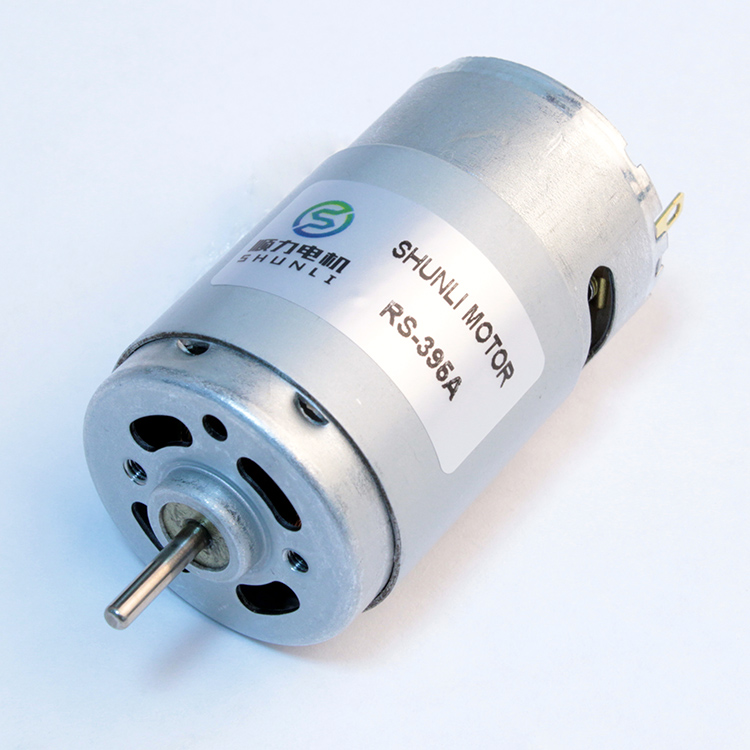

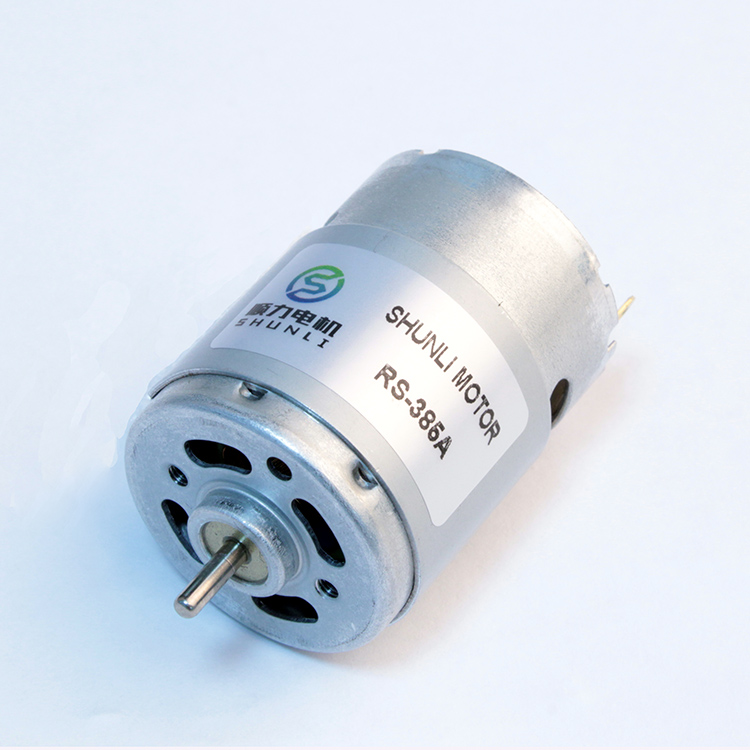

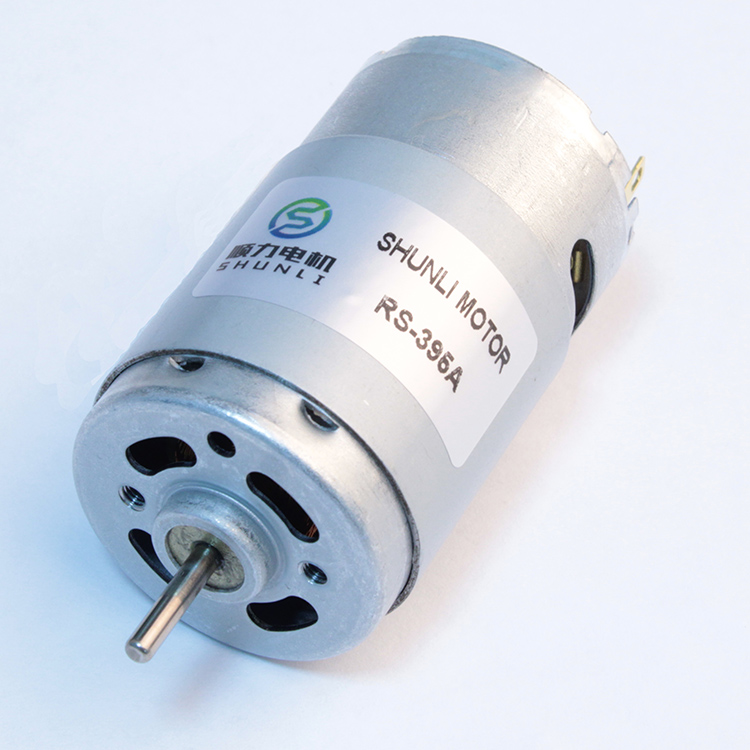

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
1 / 5
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Send Inquiry

Product Description

RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Product Description

RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Product Details
RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Motor Customized Specification, Please contact me.
Reference Drawing
------ RS - 365
RS - 365 Micro DC Motor Drawing
------ RS - 385
RS - 385 Micro DC Motor Drawing
------ RS - 395
RS - 395 Micro DC Motor Drawing
The length of shaft can be customized, Please contact me.
Reference Datasheet
PMDC MOTOR Technical Data
Model Rated Voltage (V) No-Load Rated Stall
Operating Range Nominal Speed Current Speed Current Torque Power Current Torque
RPM A RPM A mN.m / gf.cm W A mN.m / gf.cm
RS-390SH 20156R 6.0~12.0 12VDC 5000 0.08 4243 0.33 6.07/61.9 2.72 2.22 42.2/430
2975 6.0~12.0 12VDC 12000 0.29 10165 0.33 5.75/58.6 1.31 8.9 80.4/820
RS-395SH 15130 6.0~12.0 12VDC 3650 0.66 2949 0.25 5.83/59.5 1.8 1.06 30.4/310
15100R 6.0~24.0 24VDC 10300 0.07 8893 0.38 7.09/72.3 6.68 2.66 54.9/560
Recommend Product
Recommend Product Range
Recommend Product 1 Recommend Product 2 Recommend Product 3 Recommend Product 4 Recommend Product 5 Recommend Product 6 Recommend Product 7
Frequently Asked Questions
What are the primary applications for the RS-380 and RS-385 micro DC motors?
These motors are designed for high-speed, large-torque applications. They are widely used in electric drills, garden tools, toy models, home appliances, and various smart hardware solutions.
Can the technical specifications and shaft length be customized?
Yes, the electrical properties, dimensions, and shaft configuration can be customized. You can contact us to adjust the specifications to fit your specific device requirements.
What is the typical operating voltage range of these DC motors?
Depending on the model (e.g. RS-390SH or RS-395SH), the nominal operating range typically spans from 6.0V to 24.0V DC to ensure optimal power and durability.
How do the RS-390 and RS-395 models compare in speed and performance?
The RS-390 series can reach up to 12,000 RPM at 12VDC, while the RS-395 series operates efficiently up to 10,300 RPM at 24VDC, offering different torque-to-speed ratios for target devices.
Do you provide reference technical drawings for integration check?
Yes. Standard dimension drawings for the RS-365, RS-385, and RS-395 models are detailed above to help engineers review physical fitting parameters.
