Strata Motor
Strata Motor
Motor Customized Specification is available upon request.

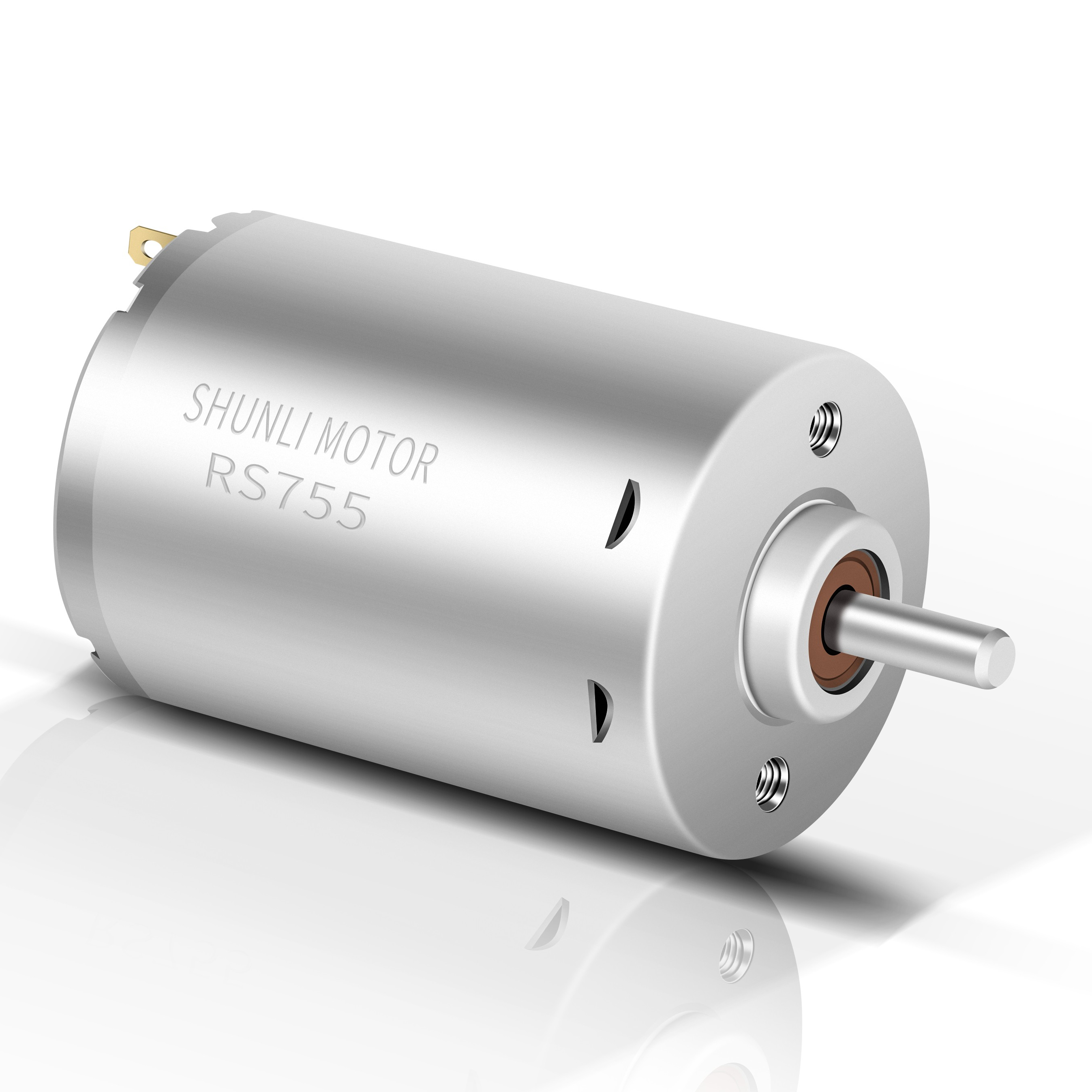

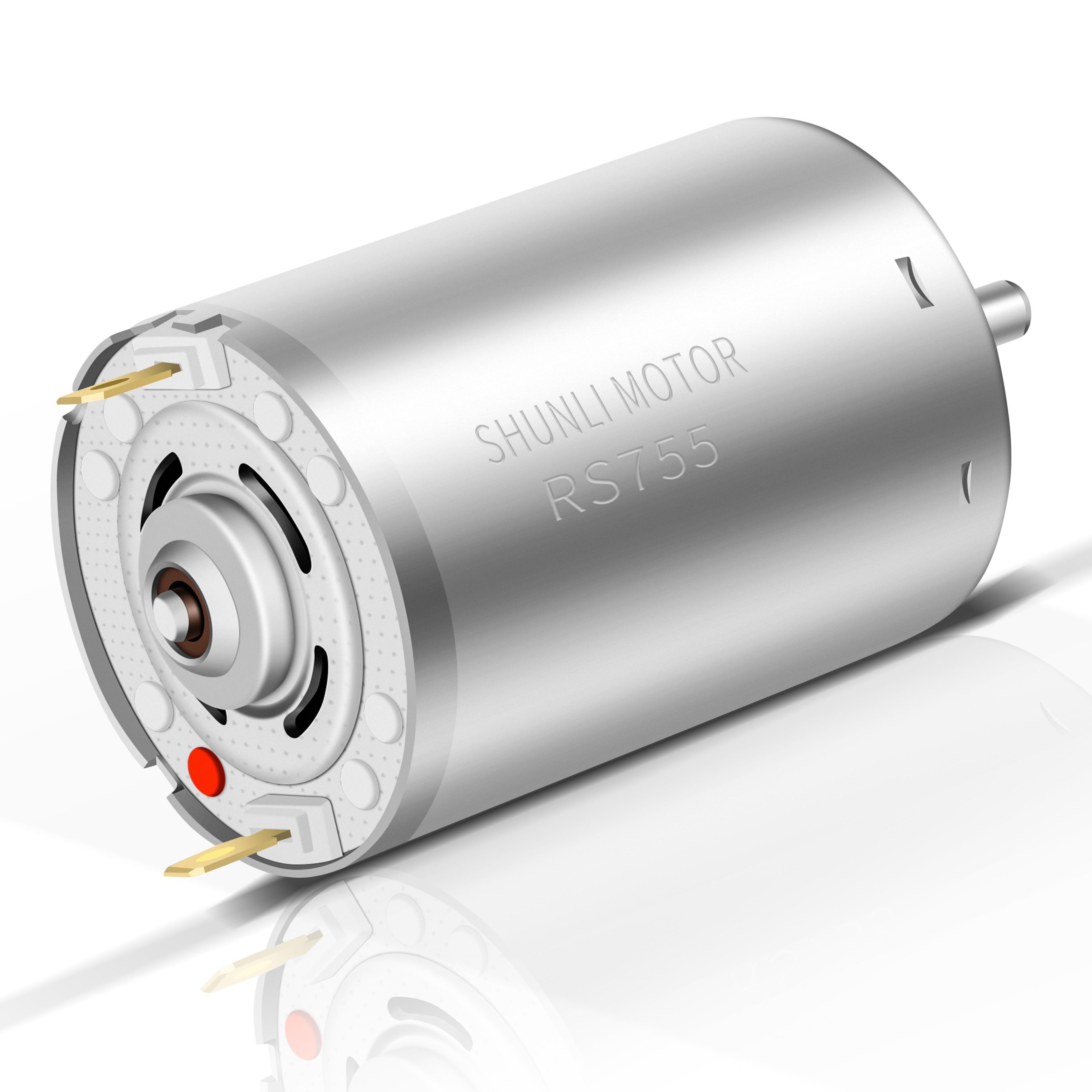

------ RS - 755 H
------ RS - 775 H
The length of shaft can be customized.
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m | W | A | mN.m | ||||
| RS-770H | 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81 | 111.8 | 115 | 666.9 |
| RS-775H | 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4 | 13.35 | 4.07 | 245.7 |
We are a factory specializing in producing motors for more than 14 years. With three specialized manufacturing facilities and a professional R&D team, our mature management and experienced engineers ensure a superior product experience.
In order to confirm quality, every step from material reception to shipment is carefully checked. Quality is the basis of our development.
High credibility and professional service.
100% on-time delivery rate to ensure your products arrive timely.
Samples produced within 2 weeks; Customized samples within 3 weeks.
Timely reply: your messages will be responded to within 2 hours.
