775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

1 / 5

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Send Inquiry

Product Description

Product Description

775 DC Motor for Power Tools - High Performance 12V 24V DC Motor

Product Details

Motor Customized Specification available upon request.

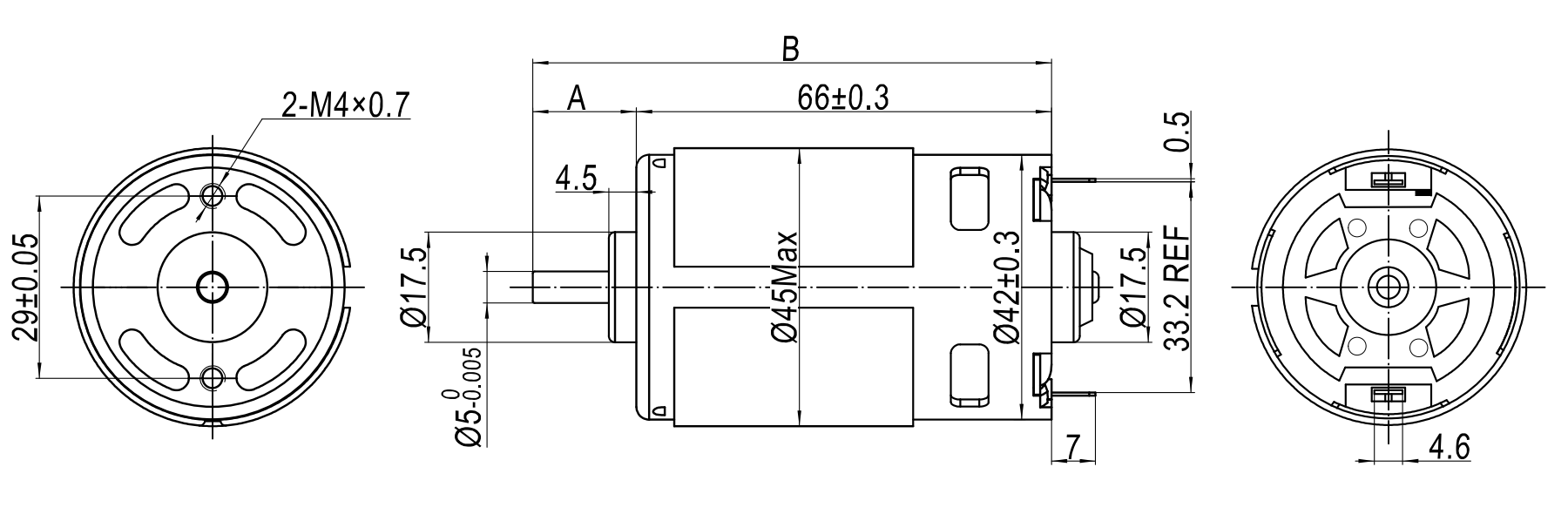

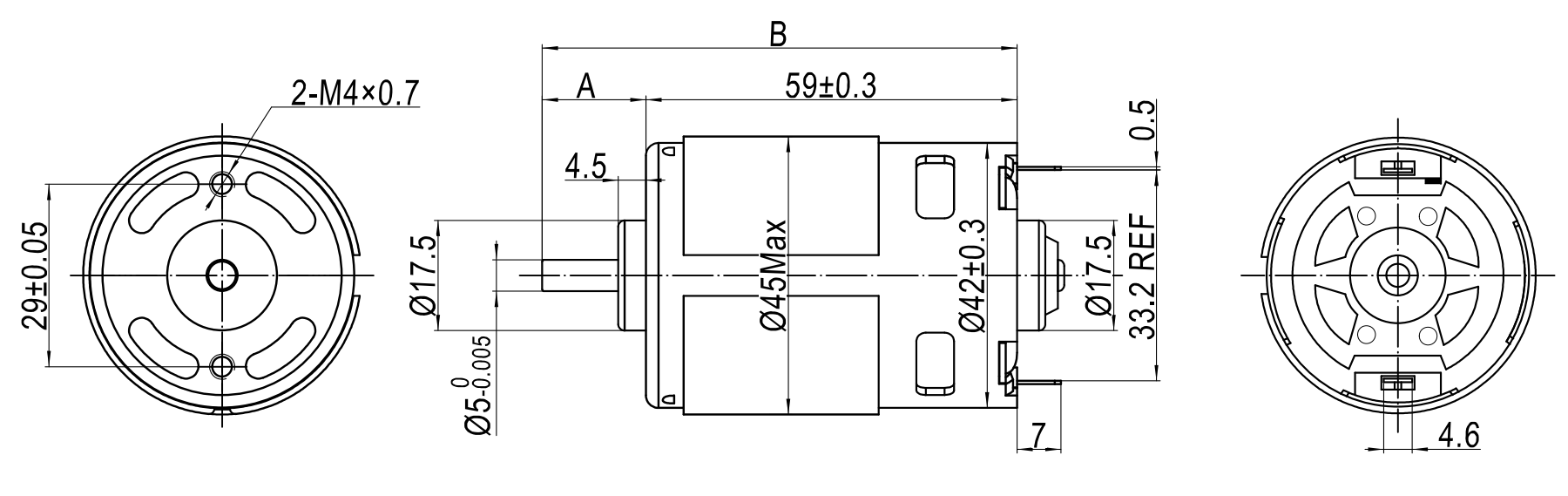

Reference Drawing

------ RS - 755 H

------ RS - 775 H

The length of shaft can be customized.

Technical Data

PMDC MOTOR Technical Data
Model	Rated Voltage (V)		No-Load		Rated				Stall
	Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
	Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-770H	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81 / 826.2	111.8	115	666.9 / 6802
RS-775H	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4 / 452.9	13.35	4.07	245.7 / 2506

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional factory specializing in micro DC motors and DC gear motors with over 14 years of industry experience.

What payment terms do you offer for new customers?

We support online Assurance Orders (MasterCard, Visa), PayPal, and TT transfers to ensure secure transactions for new clients.

Can you customize motors if I can't find a suitable model?

Yes, we provide full customization services to modify motor specifications and shaft lengths according to your specific requirements.

What certifications do your motors have?

Our products are certified with CE, FCC, and ISO. We can also apply for other specific certifications if your market requires them.

How do you ensure product quality?

We utilize professional quality control staff and advanced testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life Testing machines for every production process.

Do you offer technical support for motor selection?

Yes, our engineering team can assist you in reviewing technical drawings and data to ensure the selected motor meets your power tool or application needs.

Product Detail

775 Dc Motor for Power Tools Low Price Motor 12v 24v Dc Gear Motor

Product Description

775 DC Motor for Power Tools - High Performance 12V 24V DC Motor
