Product Description

Product Display
Product Feature
Product Model GM46EM370
Gearbox Length 46±0.5MM
Speed 1.2RPM~190RPM
Voltage 24V
Torque 0.65N.m/0.12N.m
Customization Transmission Dimensions and Motor Parameters Can Be Customized

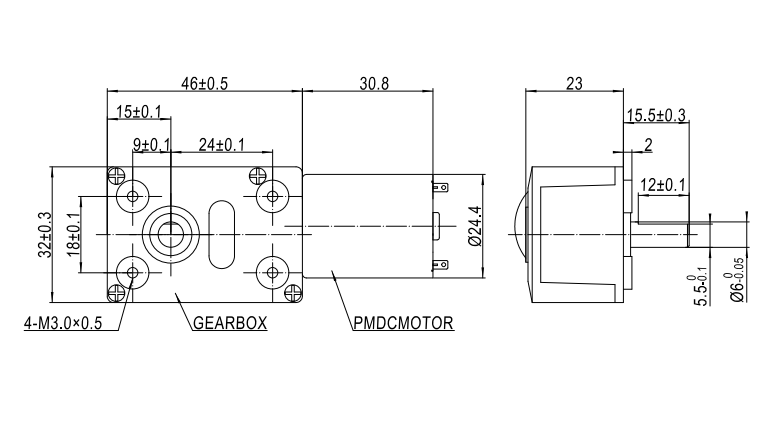

Technical Drawing 1

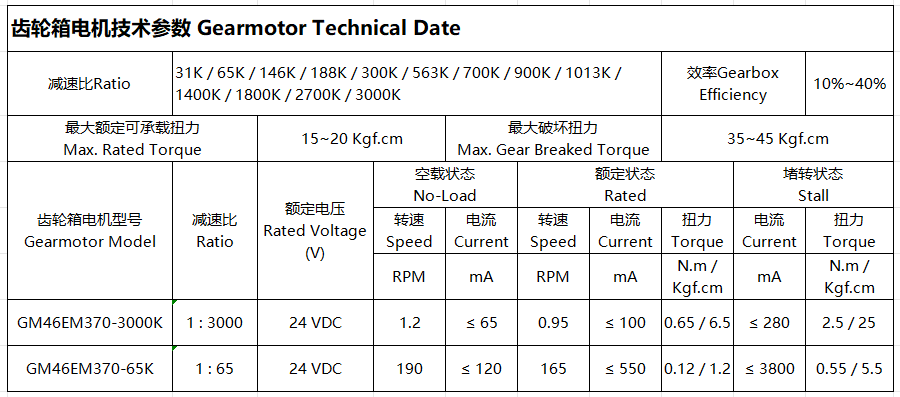

Technical Drawing 2
Application 1 Application 2 Application 3 Application 4 Application 5 Application 6
Frequently Asked Questions
QAre you a trading company or manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors with over 14 years of experience.
QWhat is the payment term for new customers?
We offer various payment options including online assurance orders (Master Card, Visa, etc.), PayPal, and TT transfers.
QCan you customize a motor if I can't find a suitable one?
Yes, we can customize a suitable motor according to your specific requirements and technical parameters.
QDo you have certificates for your motors?
Yes, we hold CE, FCC, ISO, and other relevant certificates. We can also apply for specific certificates if required.
QHow do you handle Quality Control?
We employ professional inspectors at every process of the production line. Our facility is equipped with advanced testing machines including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
QWhat is the typical lead time for orders?
Lead times depend on the specific motor specifications and order volume. We strive to provide efficient production while maintaining high quality standards.
