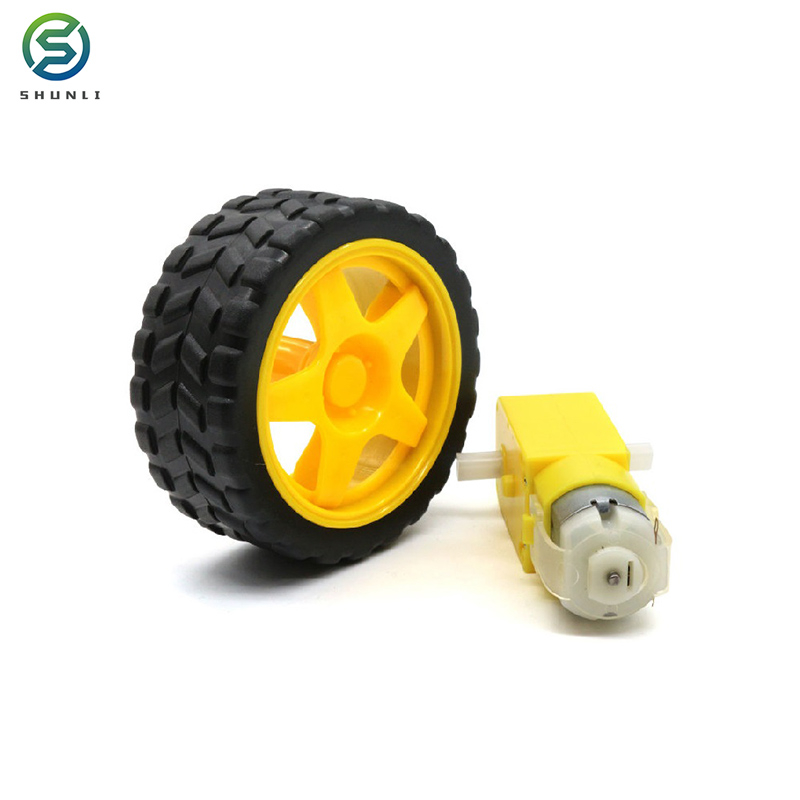

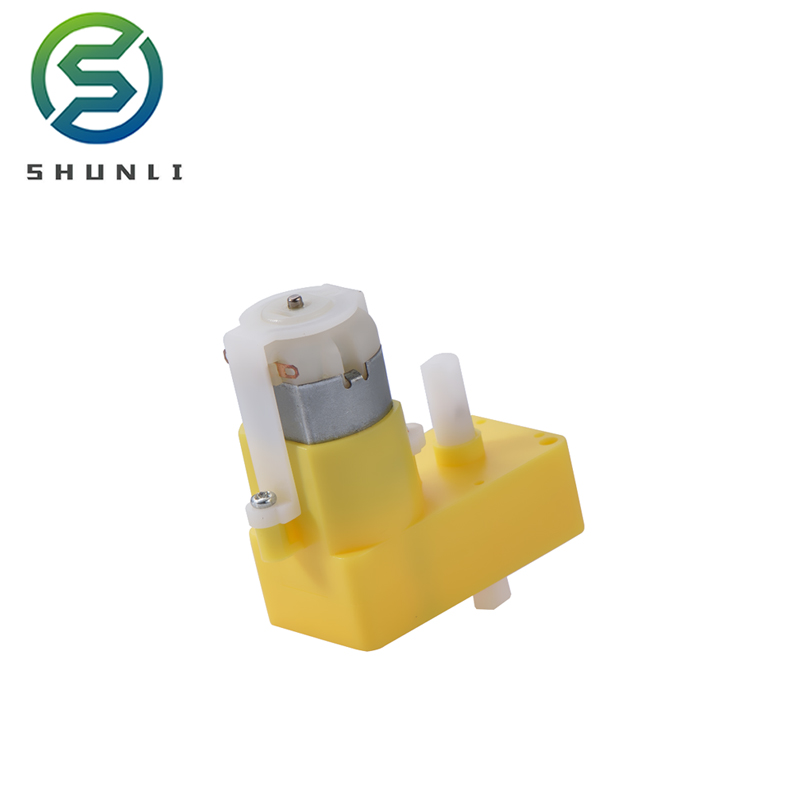

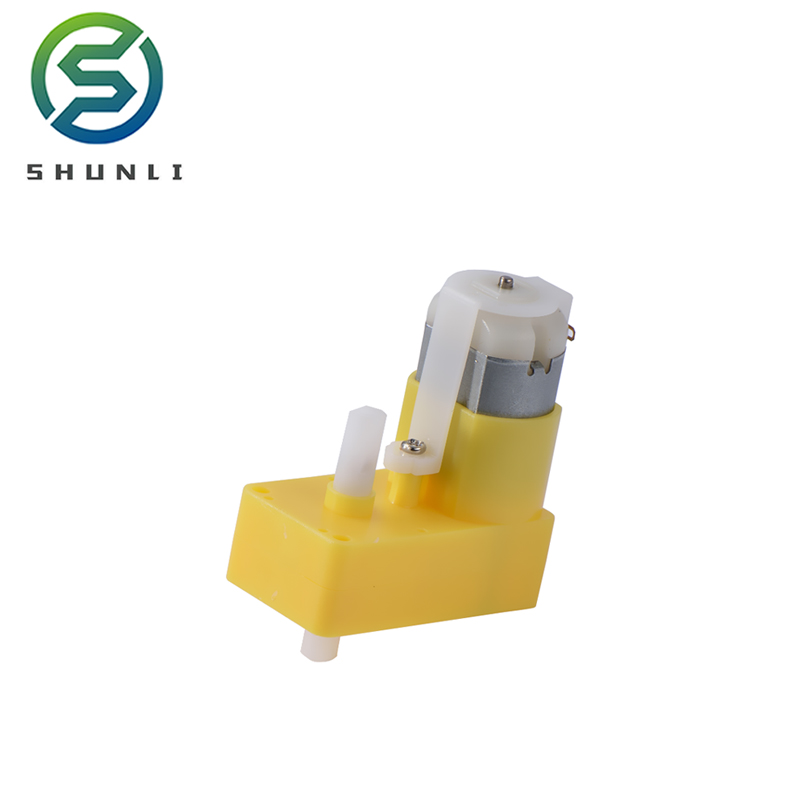

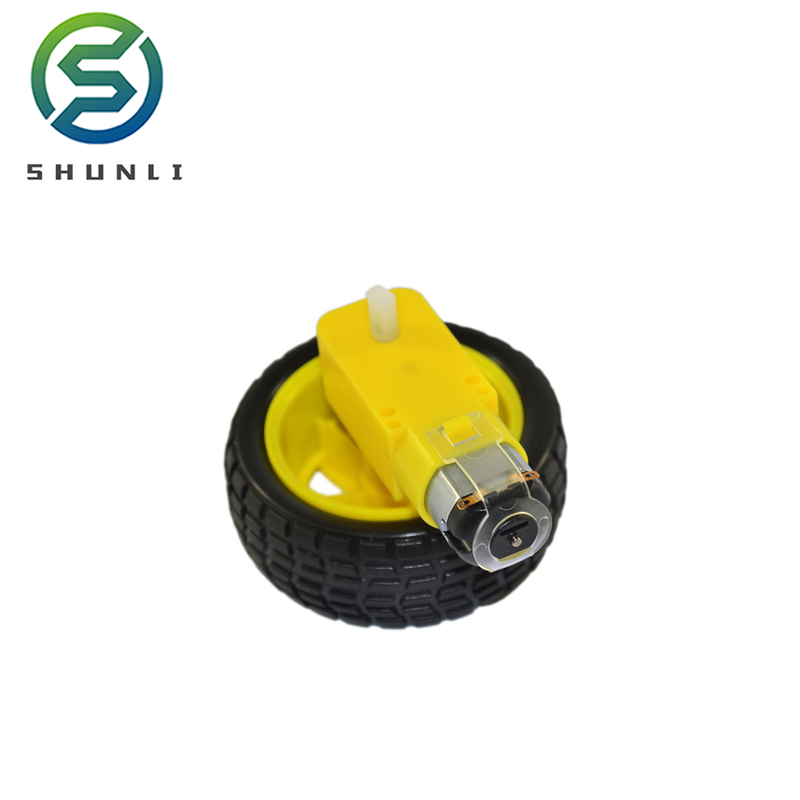

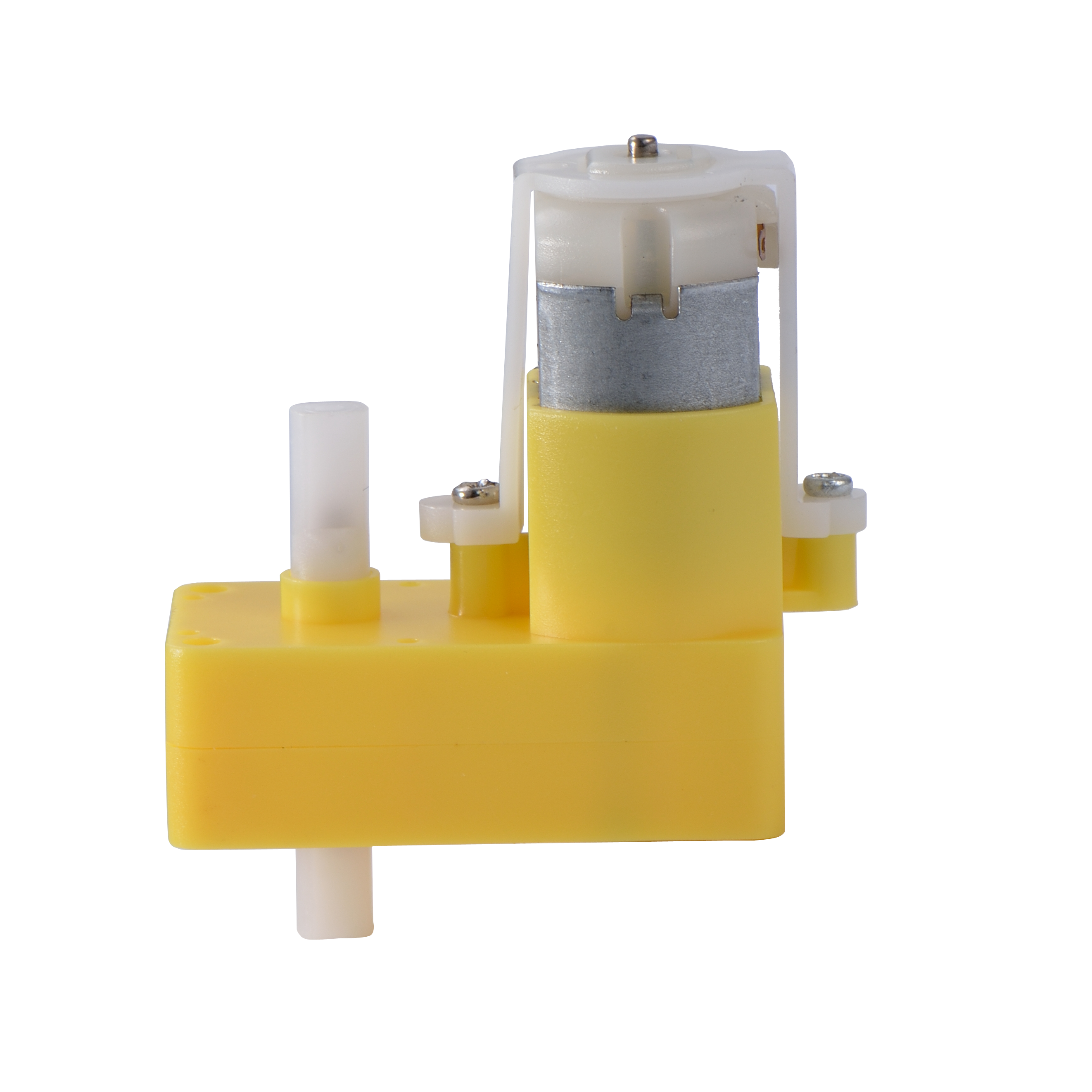

Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
1 / 5
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Yellow Dc Gear Motor with Plastic Wheels of Toy Car

Yellow Dc Gear Motor with Plastic Wheels of Toy Car

Send Inquiry

Product Description

🚀

Product Promotion

Yellow Dc Gear Motor with Plastic Wheels
Motor Promotion Banner
Yellow Dc Gear Motor Dimensions
Plastic Wheels Detail
📊

Technical Specifications & Characters

Performance Parameters
Model Voltage No-load Load Stall
Working Voltage (V) Rated voltage Speed Current Speed Current Torque Power Output Stall torque Current
V rpm A rpm A N.m Kg.m W N.m Kg.m A
SGP01S-A130-14150-120 3-12.0V 4.5 100 0.2 87 0.5 0.066 0.675 0.4 0.265 2.7 1.25
SGP01S-A130-18100-220 3-12.0V 3.0 50 0.2 40 0.3 0.120 1.233 0.6 0.393 4.003 2.15
🔍

Visual Details & Drawings

Technical Drawing
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Product View 6
❓

Frequently Asked Questions

What is the working voltage range for the yellow DC gear motor?
The motor is designed to operate within a flexible range of 3.0V to 12.0V DC, making it compatible with various battery setups.
Does this product include the wheels shown in the images?
Yes, this set includes the yellow DC gear motor paired with matching plastic wheels specifically designed for toy cars and small robot projects.
What are the typical no-load speeds for these motors?
Depending on the specific model, the no-load speed ranges from 50 rpm to 100 rpm at their respective rated voltages.
Are these motors suitable for DIY robotics?
Absolutely. These gear motors are widely used in educational robot kits, smart car DIY projects, and electronic toy applications due to their compact size and reliable torque.
What is the stall torque of the SGP01S-A130-18100-220 model?
The model SGP01S-A130-18100-220 features a stall torque of 0.393 N.m (approx. 4.003 Kg.m) at a stall current of 2.15A.
