Product Description

Product Banner

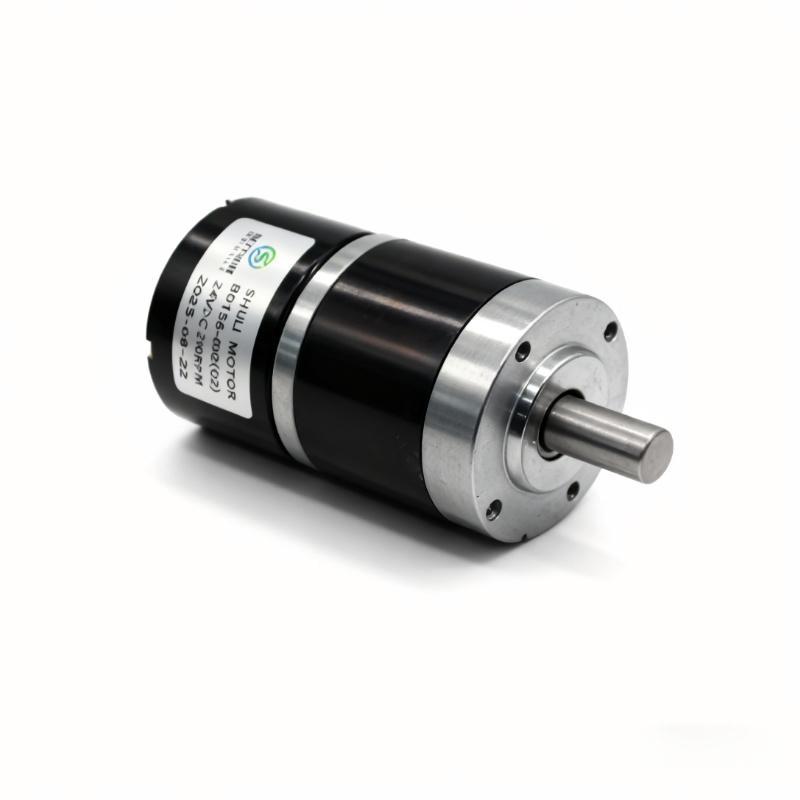

Product Overview
Product Model GMP36MBL3626/3640/3650
Reduction ratio 1:139 / 1:27 / 1:264
Speed 18.5RPM - 185RPM
Voltage 24V
Torque 0.45N.m ~ 3N.m
Customization Transmission Dimensions and Motor Parameters Can Be Customized
Technical Specifications & Dimensions

Our gear motors are designed for precision and durability, offering versatile configurations for industrial applications.

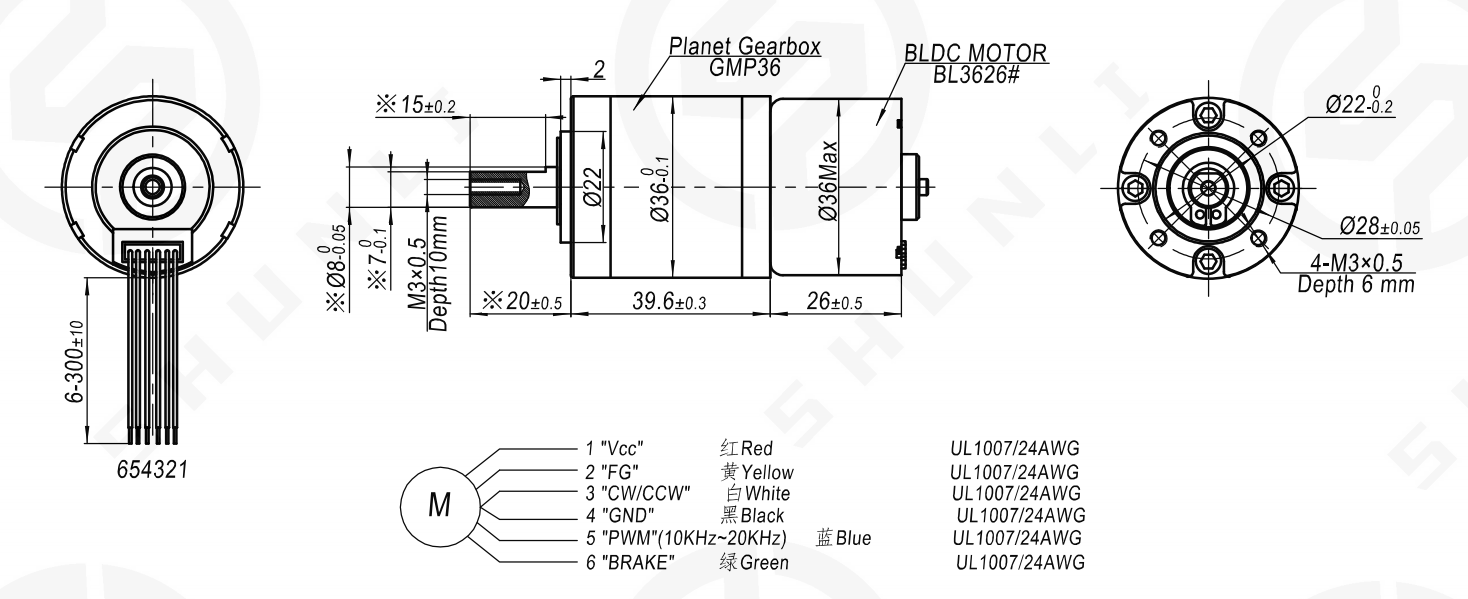

Technical Drawing
Product View 1 Product View 2 Product View 3 Product View 4 Product View 5 Product View 6
Frequently Asked Questions
1. Are you a trading company or a manufacturer? We are a factory specializing in micro DC motors and DC gear motors with over 14 years of industry expertise.
2. What are the payment terms for new customers? New customers can utilize Online Assurance Orders (supporting Visa, Master Card) or standard methods like PayPal and TT.
3. Can you customize a motor if I don't find a suitable model? Yes. We provide full customization services to modify motor parameters and transmission dimensions according to your specific requirements.
4. What certifications do your motors hold? Our products are certified with CE, FCC, and ISO. We can also apply for additional certifications if required for your local market.
5. How do you ensure product quality control? We employ professional inspectors on every production line and utilize advanced testing machinery, including Hardness Testers, 2.5D Image Testers, and Salt Spray Chambers.
6. Do you perform final performance testing? Yes, every motor undergoes a complete set of tests using Life Testers, Temperature Test Machines, and Noise Testers before shipping.
