Home > top sale motors > Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
1 / 4
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Send Inquiry

Product Description

Product Banner

⚙️ Technical Specifications

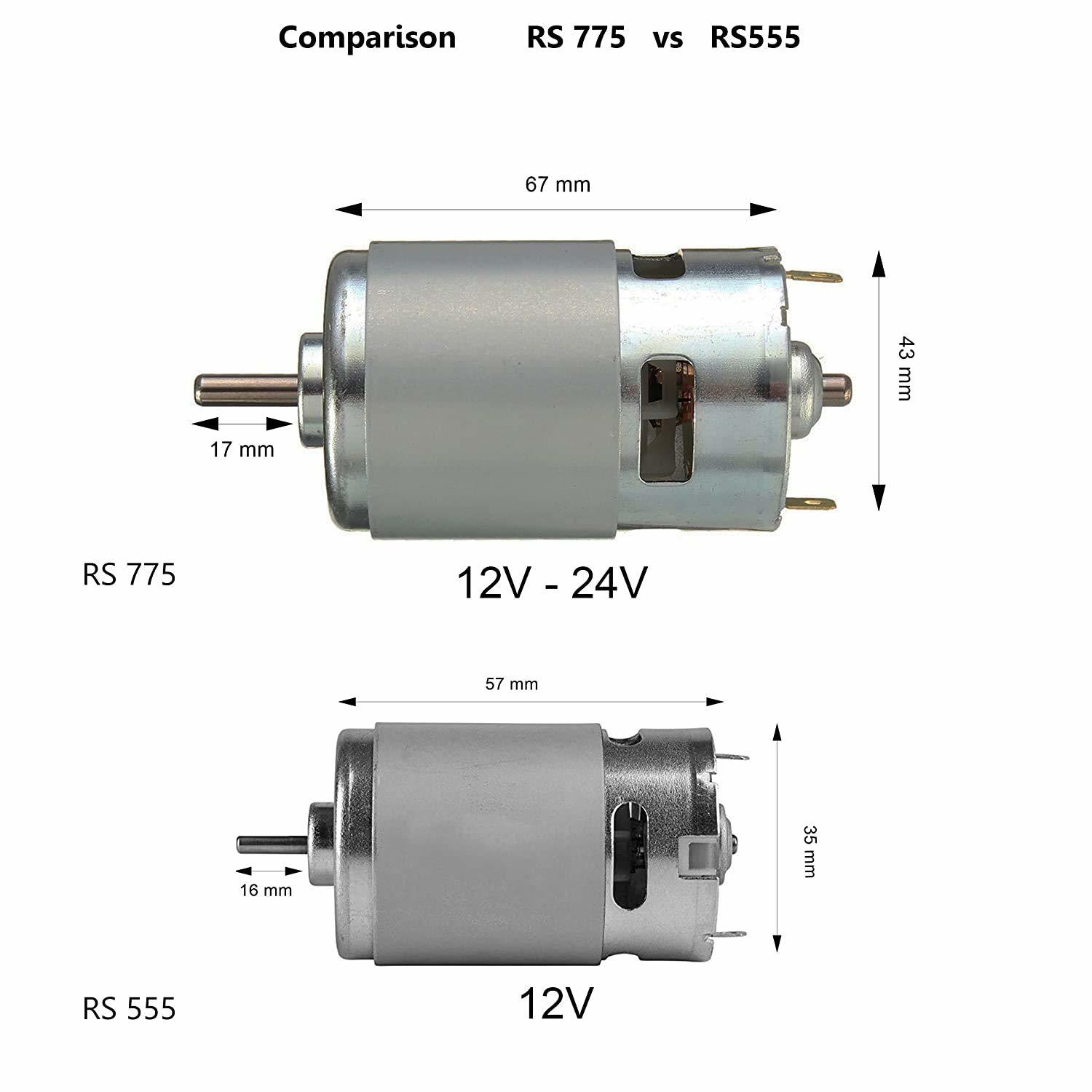

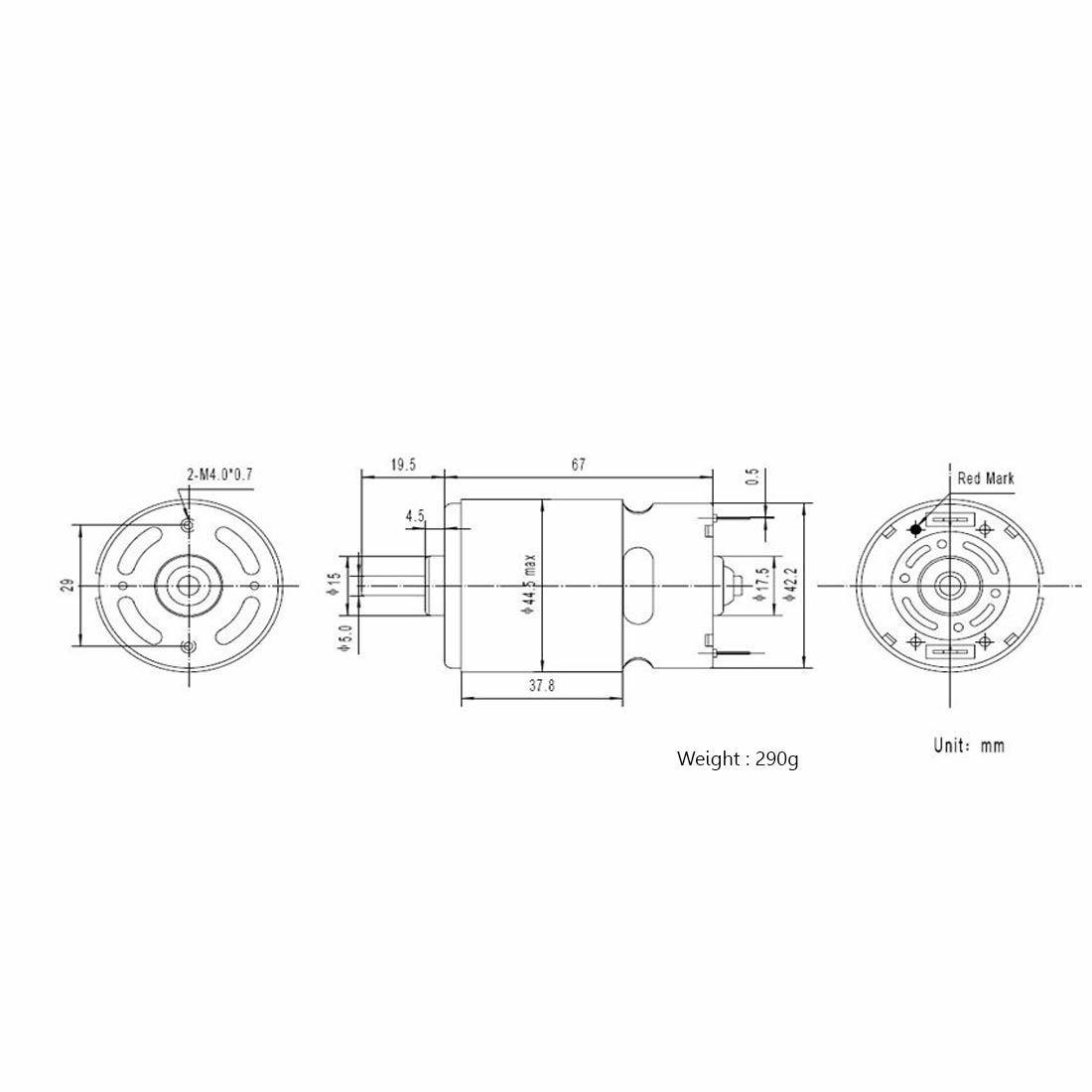

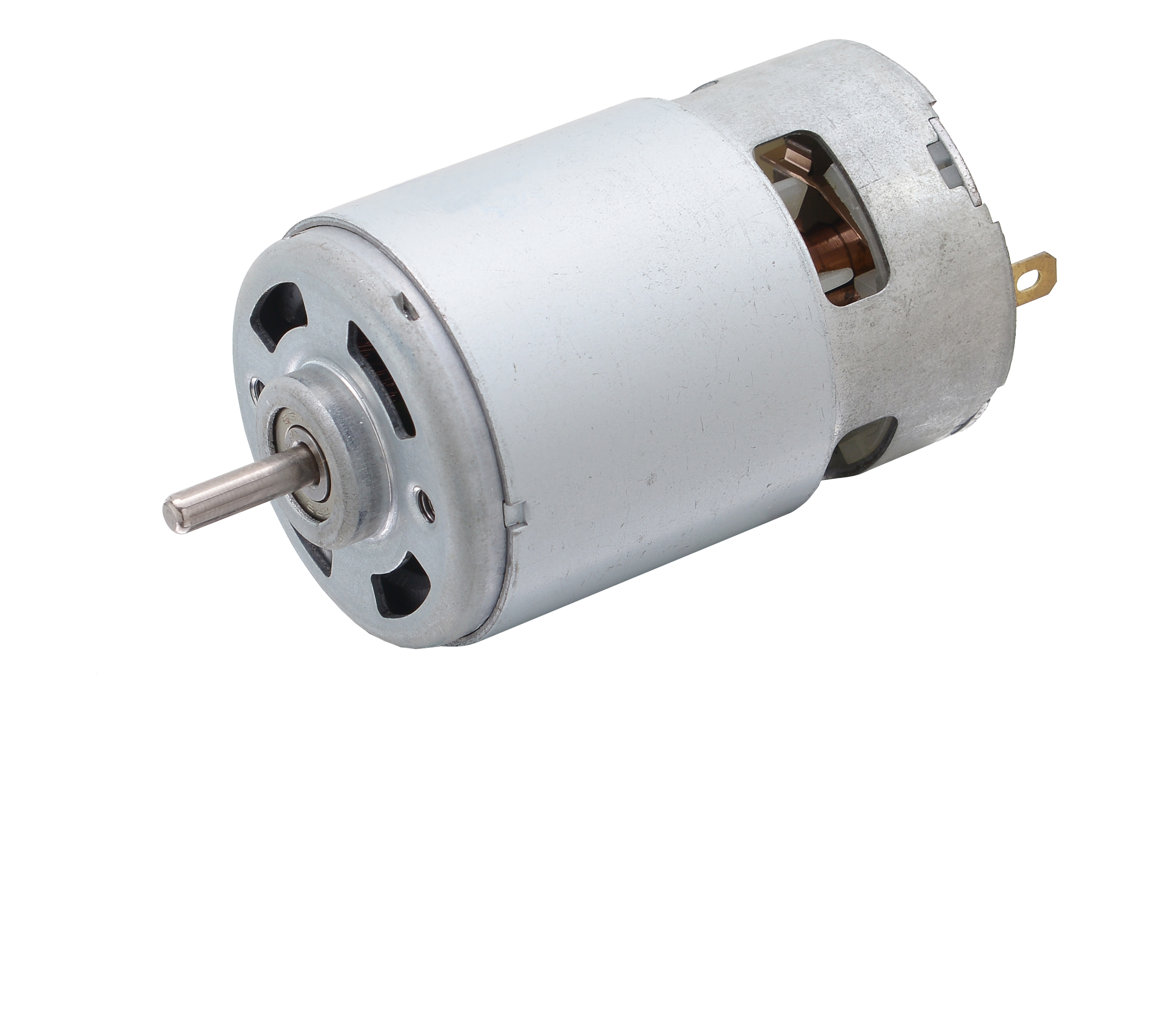

Motor Dimension
Product Model 7 Series
Motor Diameter 7 Series: 42.03 mm (With protecting magnetic ring: 45 mm)
Motor Length 755 motor: 59mm / 775 motor: 66 mm
Motor Voltage 7.2-48VDC
Motor Speed 3000-20000RPM
Motor Shaft Standard 5mm D shaft (Shape and length can be customized)

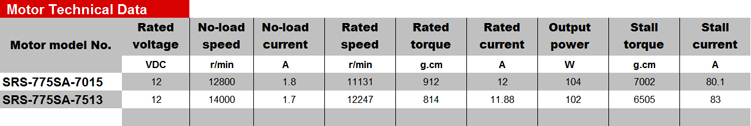

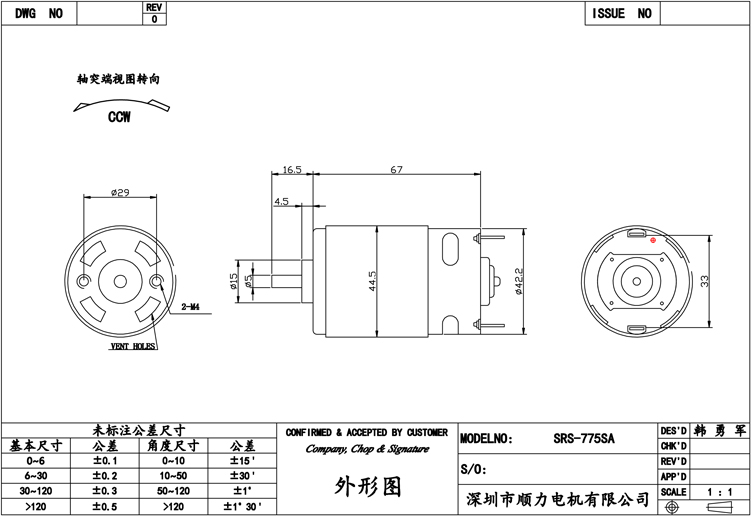

💎 Product Performance

Performance Detail 1 Performance Detail 2

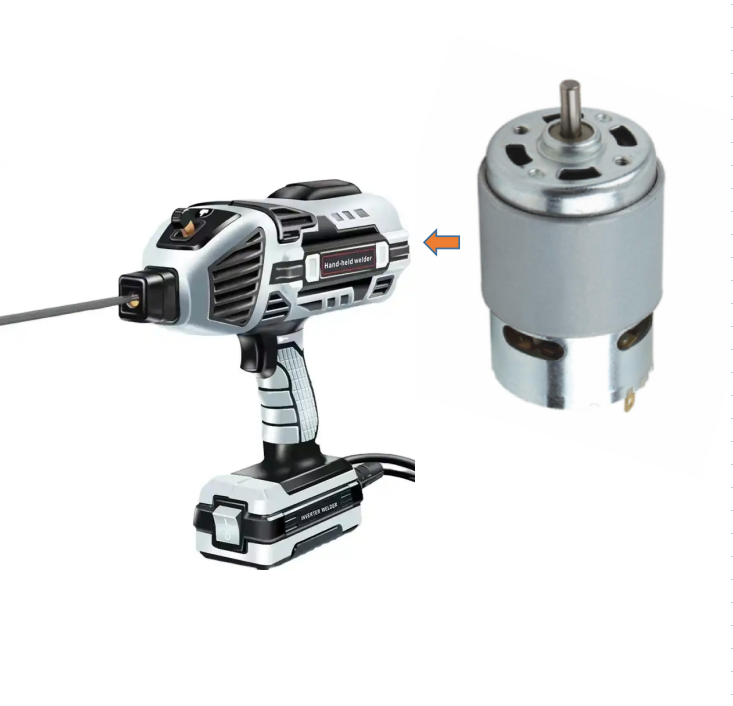

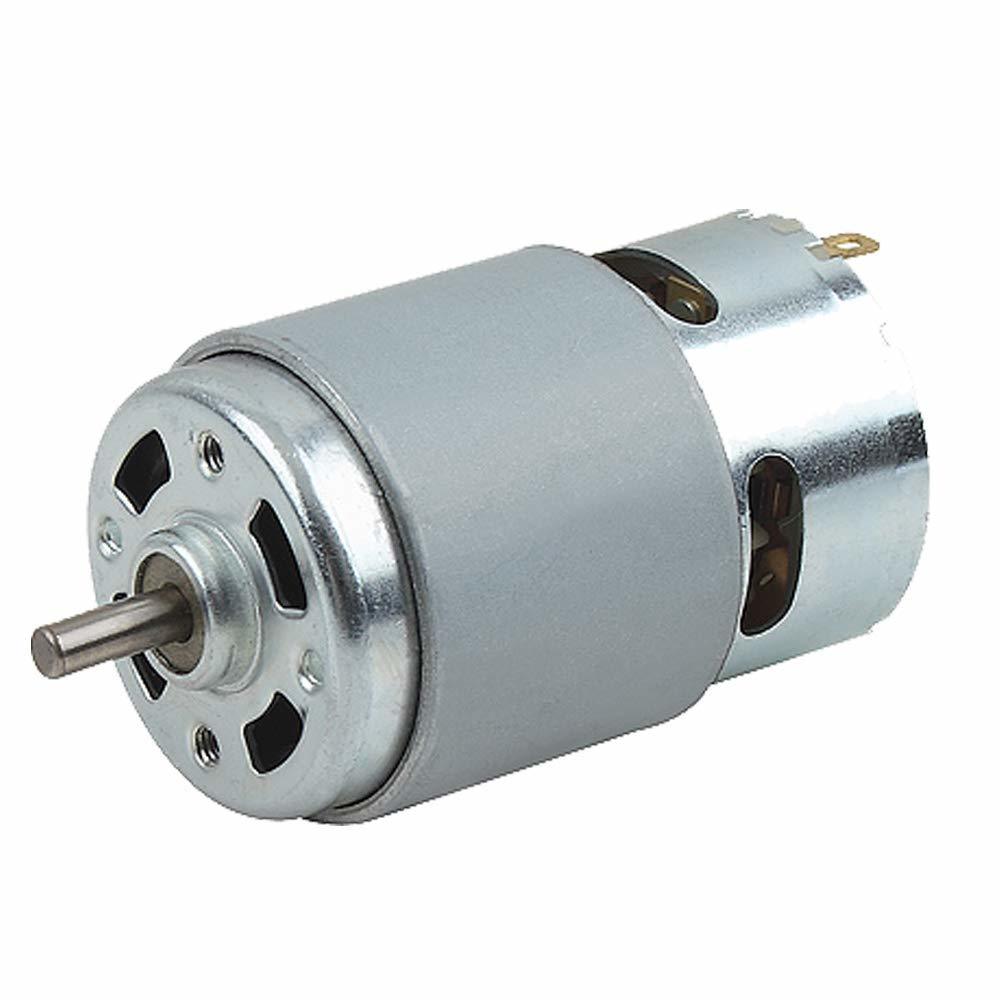

📸 Product Display

❓ Frequently Asked Questions

1. Are you a trading company or a manufacturer?
We are a specialized factory focusing on micro DC motors and DC gear motors for more than 14 years.
2. What are the payment terms for new customers?
We offer flexible payment options including online assurance orders (supporting MasterCard, Visa, etc.), PayPal, and TT.
3. Can you customize a motor if I cannot find a suitable one on your site?
Yes, we can customize motor specifications and shaft dimensions according to your specific requirements.
4. Do your motors have quality certifications?
Yes, our products are certified with CE, FCC, ISO, and other standards. We can apply for additional certifications if needed.
5. How do you handle quality control?
We employ professional inspectors on every production line and use advanced equipment such as Hardness Testers, 2.5D Image Testers, and Life Testers to ensure performance.
6. Can I request samples for testing before a bulk order?
Yes, we encourage customers to test samples to ensure the motor performance matches their application needs.
