📋 Product Specifications
| Product Model |
GMP12PMN10/N20/N30 |
| Gearbox Length |
19.7±0.5mm |
| Speed |
65RPM-205RPM |
| Voltage |
4.6V/4.5V/12V |
| Torque |
0.2~0.5 mN.m |
| Support Customization |
The Transmission Dimensions And Motor Parameters Can Be Customized |

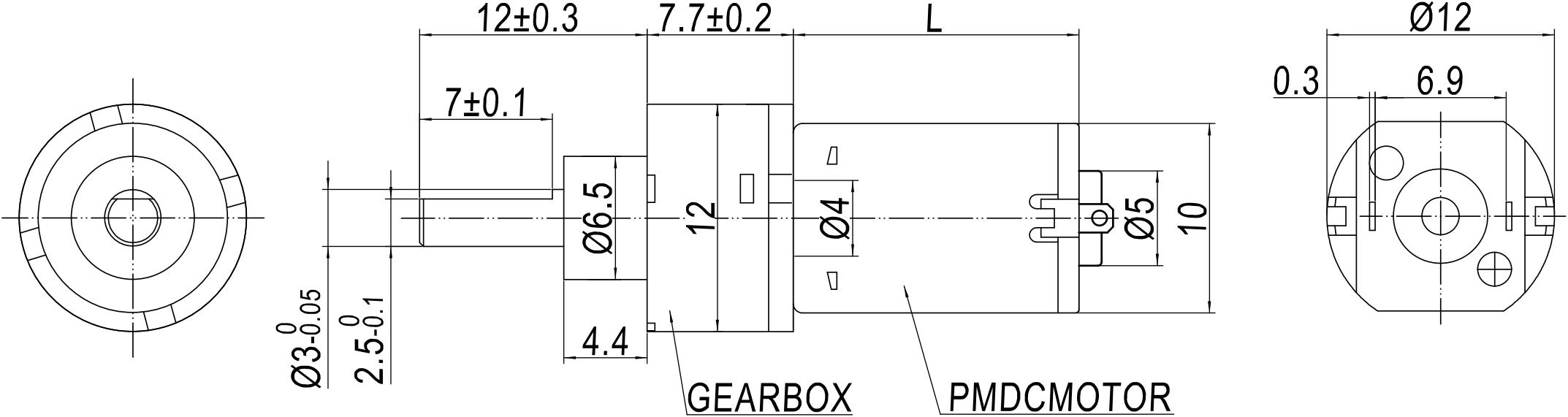

📐 Technical Drawing & Dimensions

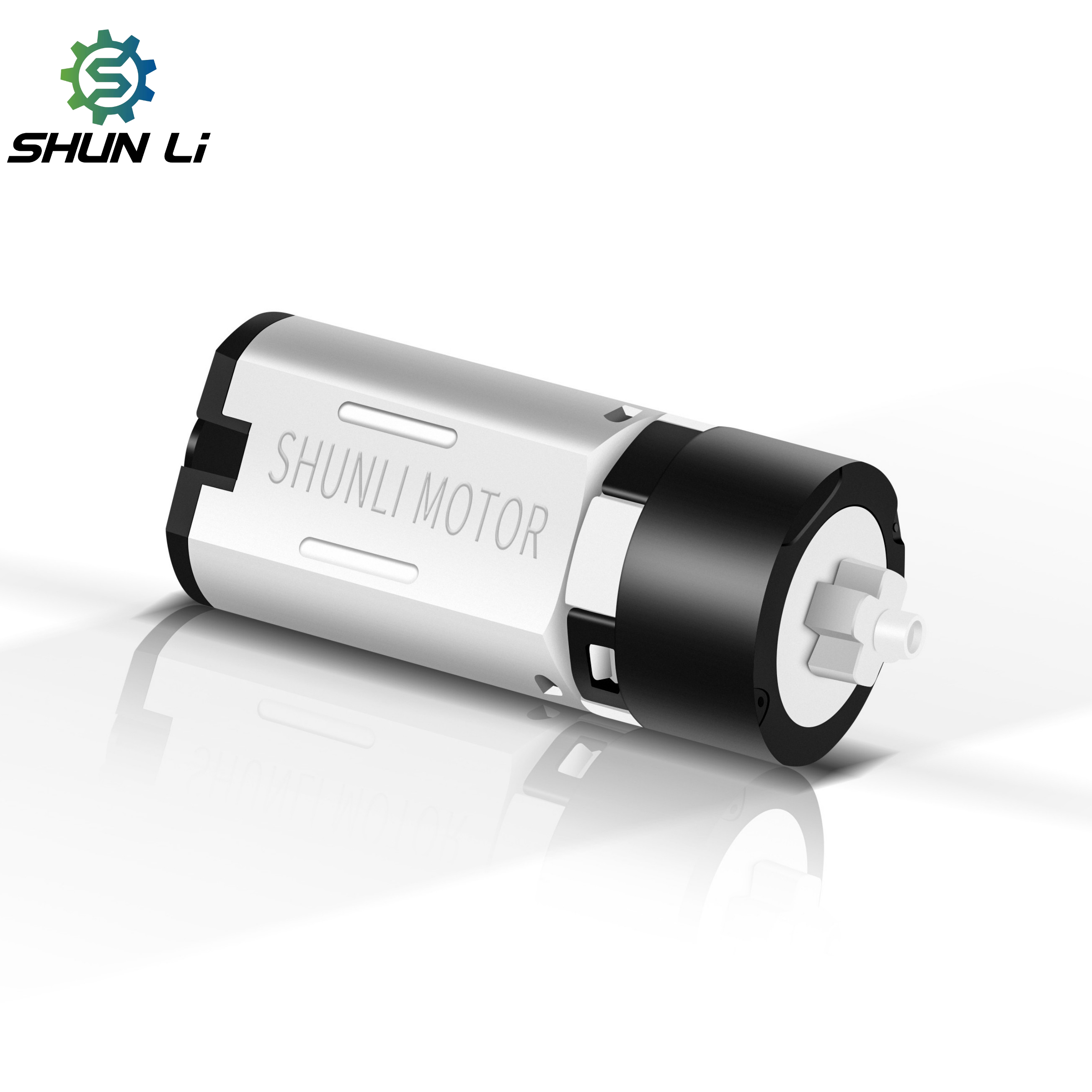

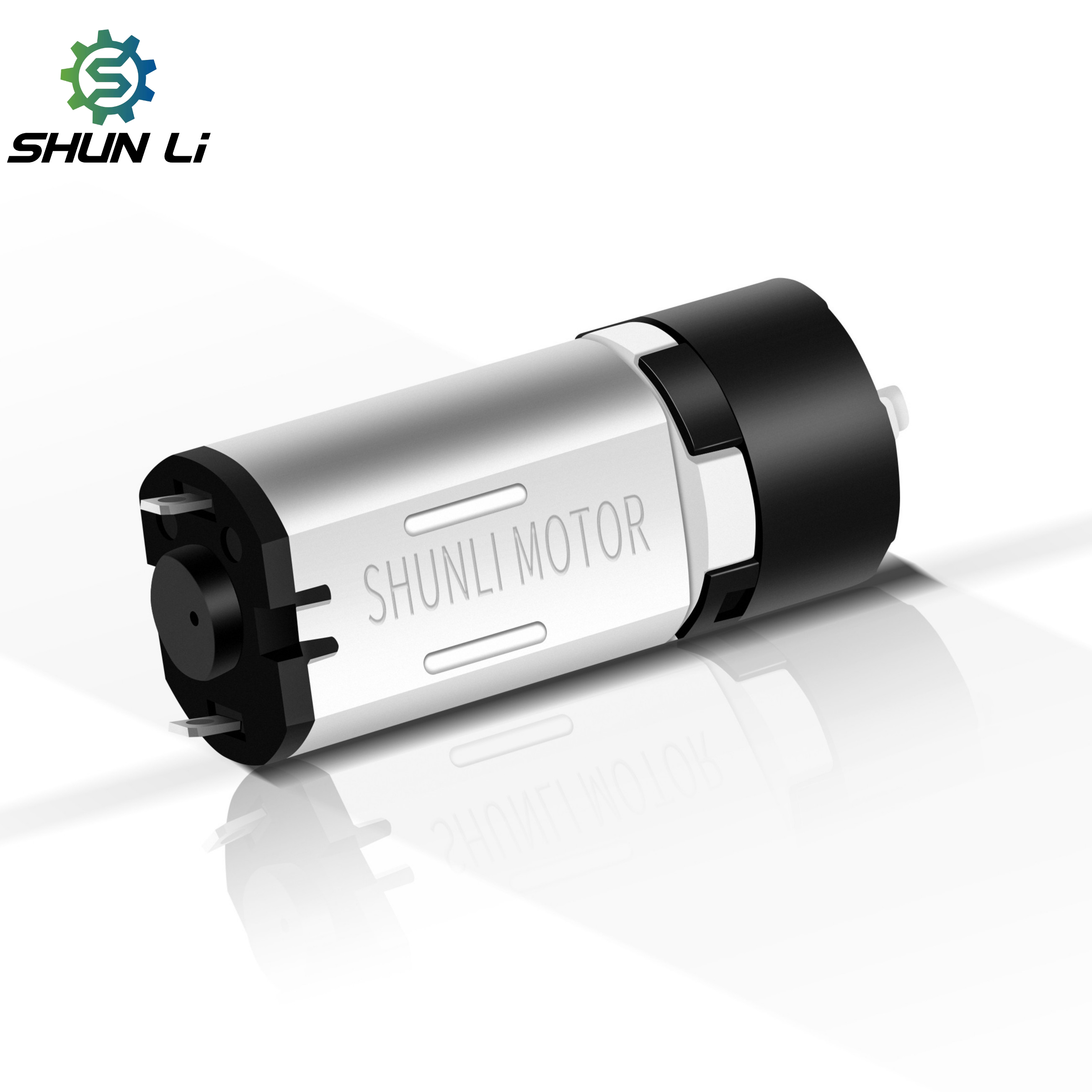

🖼️ Product Display
❓ Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
2. Can I customize a motor for my specific needs?
Yes, we can customize a suitable motor according to our customer's specific requirements, including dimensions and parameters.
3. What are the available payment terms?
We accept various payment methods including online payments with Master Card and Visa, as well as PayPal and TT transfers.
4. What quality certifications do your motors have?
Our motors are certified with CE, FCC, ISO, and other relevant standards. We can also apply for other specific certifications if required.
5. How do you ensure quality control during production?
We have professional checking staff on every production line process. Every finished motor undergoes comprehensive testing to ensure quality standards.
6. What testing equipment do you use for quality assurance?
We use specialized machinery such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
