China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
1 / 5
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

Send Inquiry

Product Description

Product Overview

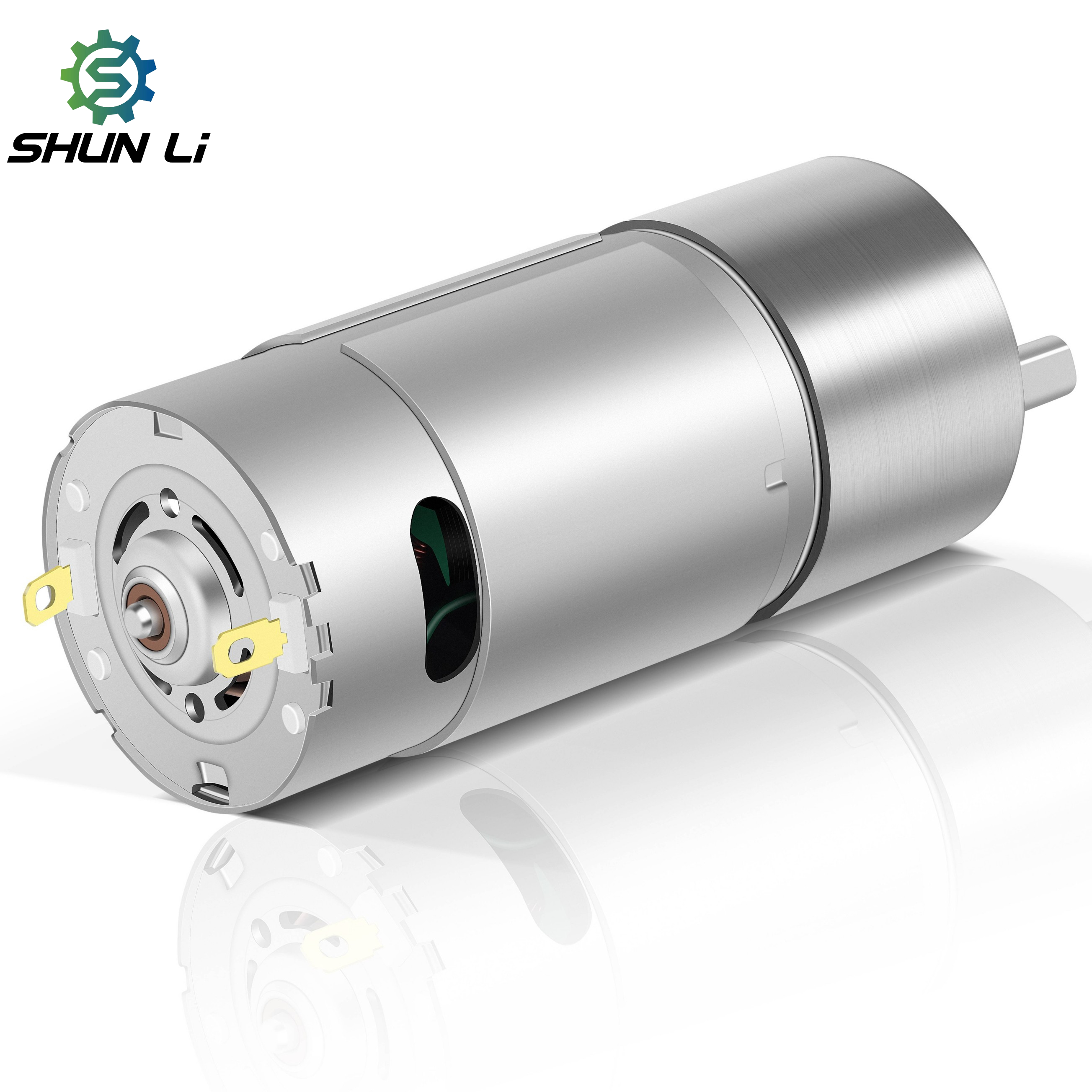

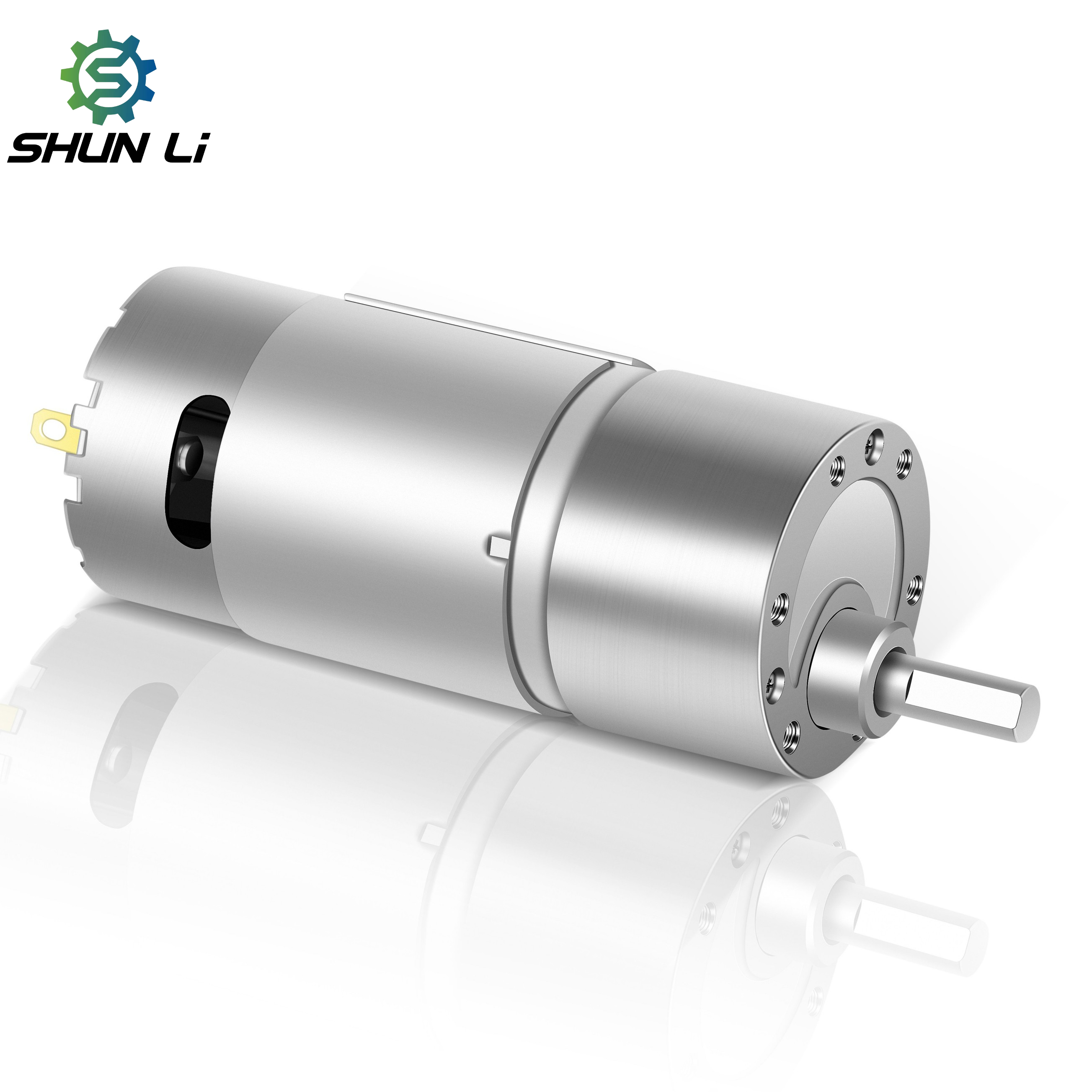

Motor Detail
Technical Parameters
Product Model GM37BM545/555/575
Gearbox Length 50mm-65mm
Speed 17.5RPM-240RPM
Voltage 24V / 12V
Torque 0.85 N.m / 1.8 N.m / 2.0 N.m
Customization Support for dimensions and motor parameters
Dimensional Drawings

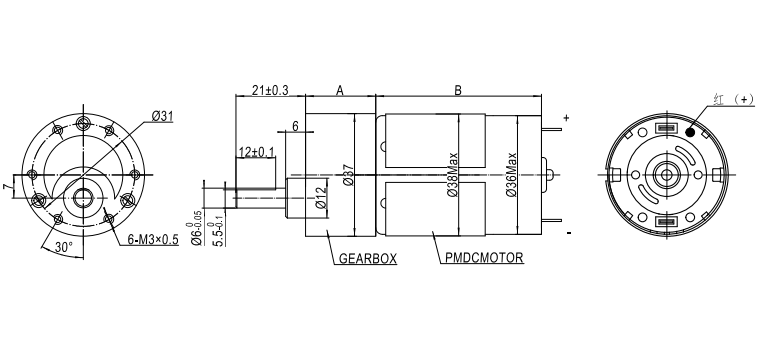

Drawing 1

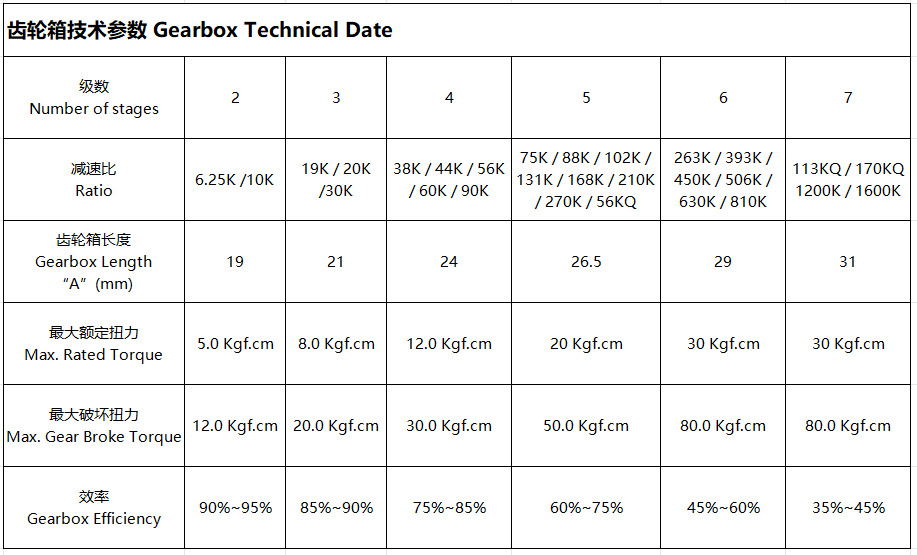

Drawing 2

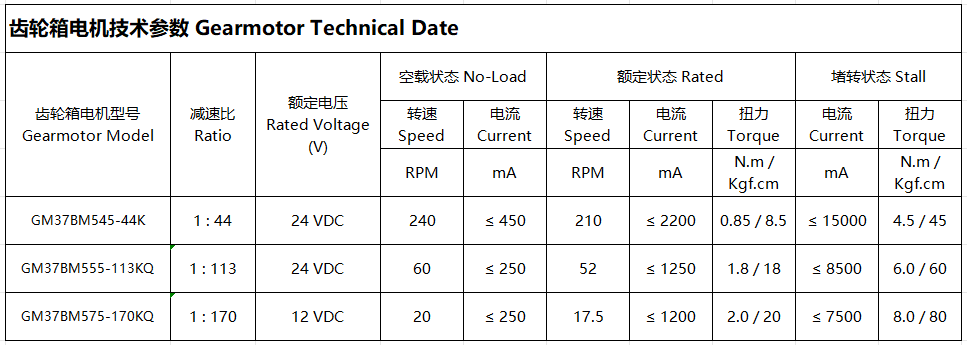

Drawing 3
Product Display

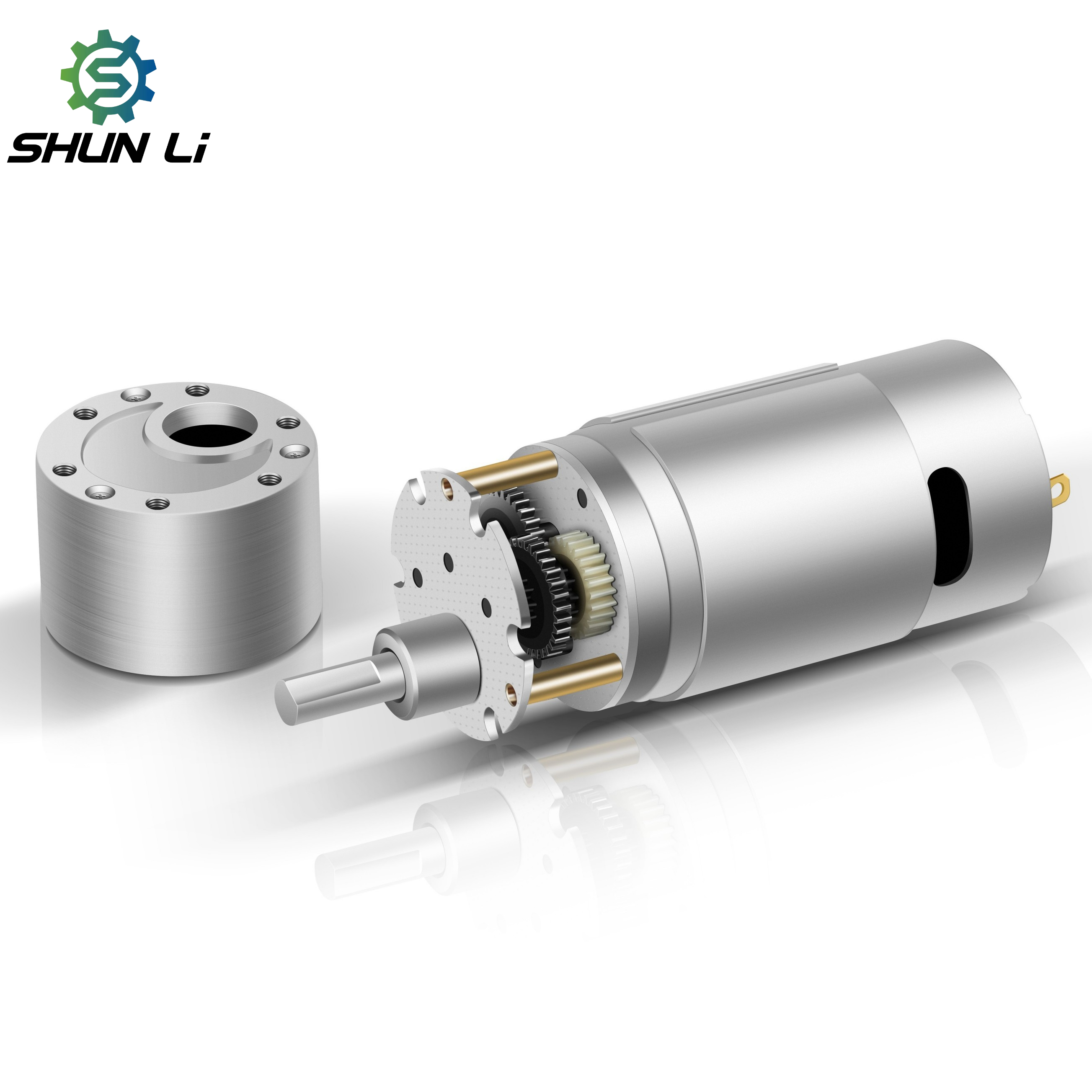

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
We are a factory specializing in micro DC motors and DC gear motors with over 14 years of industry experience.
Q2: What are the payment terms for new customers?
New customers can pay online via Assurance Orders (MasterCard, Visa, etc.), PayPal, or T/T wire transfer.
Q3: Can you customize a motor if I can't find a suitable one?
Yes, we provide full customization services to modify motor parameters and dimensions according to your specific requirements.
Q4: Do your motors come with official certifications?
Yes, our motors are certified with CE, FCC, ISO, and other standards. We can apply for additional certifications if required.
Q5: How do you ensure product quality?
We employ professional inspectors at every stage of production. Finished motors undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers.
Q6: Do you provide technical support for installation?
Yes, our engineering team provides comprehensive technical guidance to ensure our motors integrate perfectly with your application.
