Home > Planetary Gear Motor > 28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
1 / 4
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v

28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v

Send Inquiry

Product Description

Product Overview

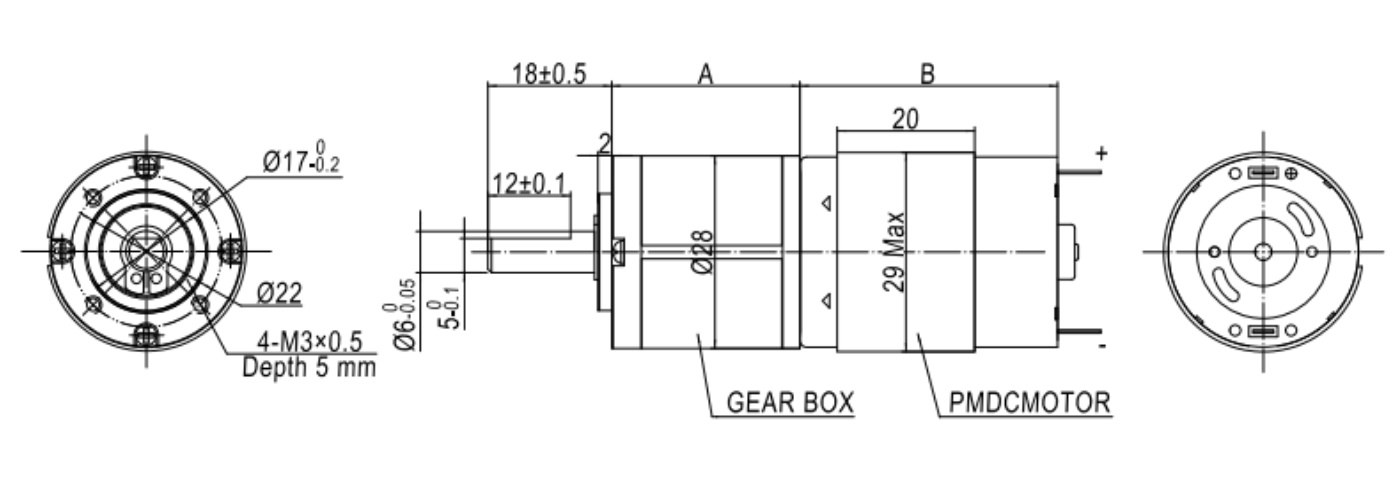

Technical Drawing

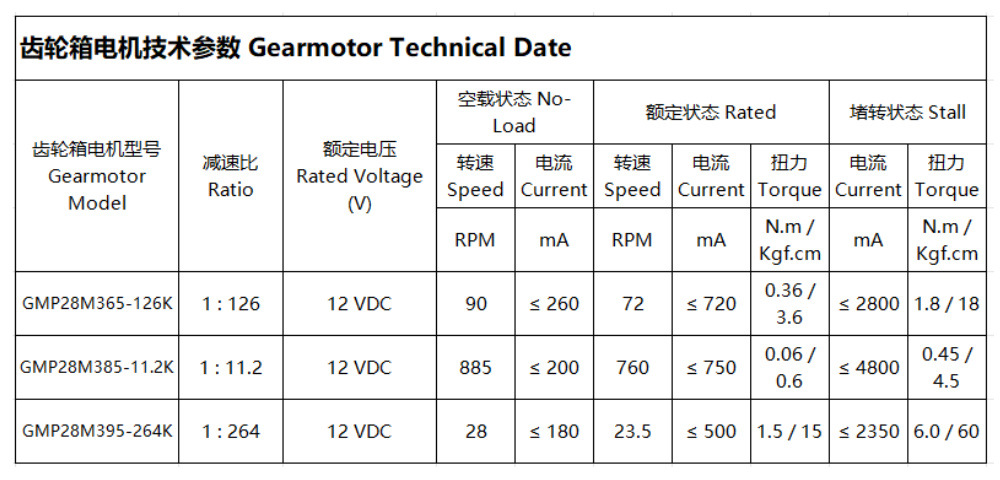

Product Model GMP28M365/385/395
Gearbox Length 21.7~44.8mm
Speed 23.5RPM-885RPM
Voltage 12V
Torque 0.36 N.m/0.06 N.m/1.5 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
Detailed Feature 1
Detailed Feature 2
Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
Frequently Asked Questions
1. Are you a trading company or a manufacturer? We are a factory specializing in micro DC motors and DC gear motors with over 14 years of industry experience.
2. What are the payment terms for new customers? New customers can utilize online Assurance Orders for secure payments via Master Card, Visa, and other methods. We also accept PayPal and TT transfers.
3. Can you customize a motor if I cannot find a suitable model? Yes, we provide full customization services to modify motor parameters and dimensions to meet your specific requirements.
4. Do your motors come with quality certifications? Yes, our products are certified with CE, FCC, and ISO. We can also apply for other specific certifications if required by your region.
5. How do you handle quality control? We employ professional inspection staff at every production stage. Finished motors undergo rigorous testing using advanced equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature machines, and Noise testers.
6. Is technical support available for motor selection? Our engineering team is available to help evaluate your application needs and recommend or design the most efficient motor solution for your project.
