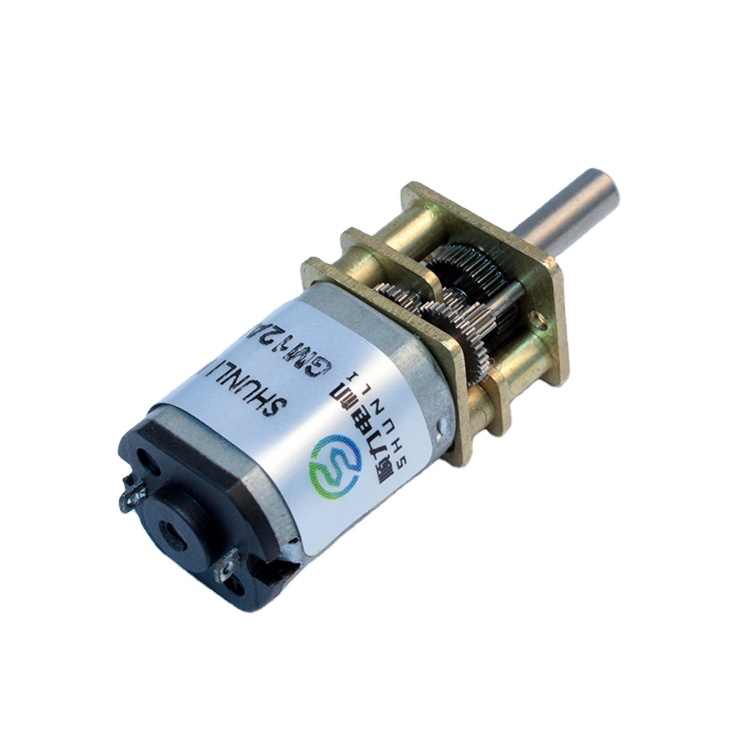

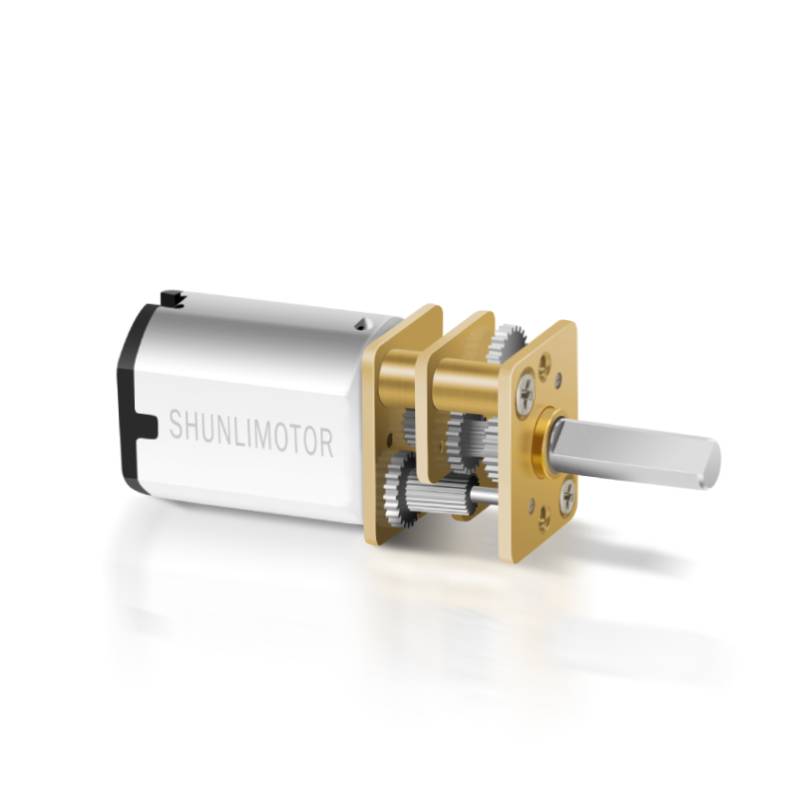

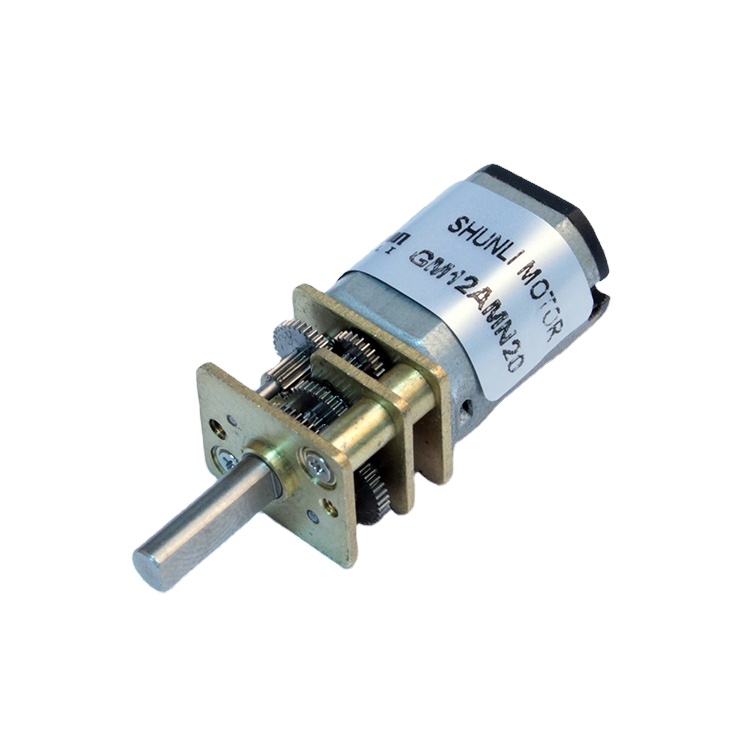

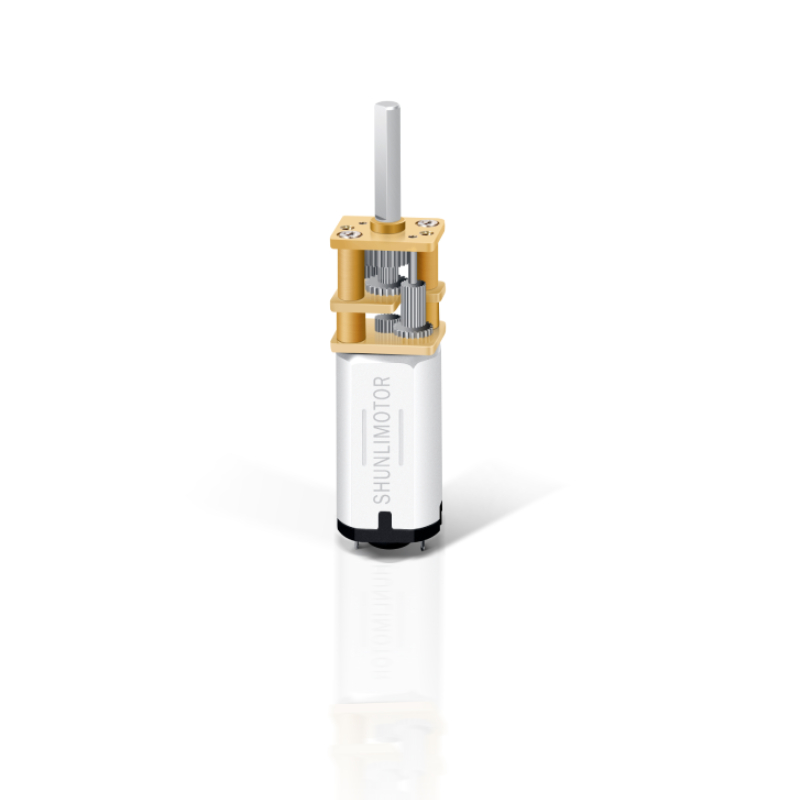

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

Product Description

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor
Product Description
12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

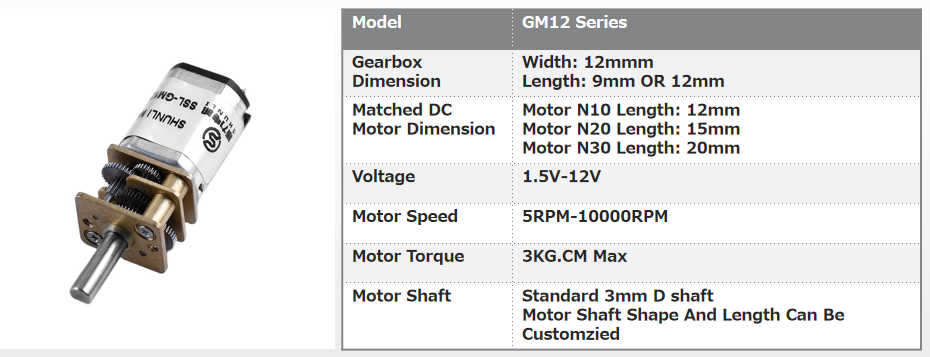

Product Details
Product Details

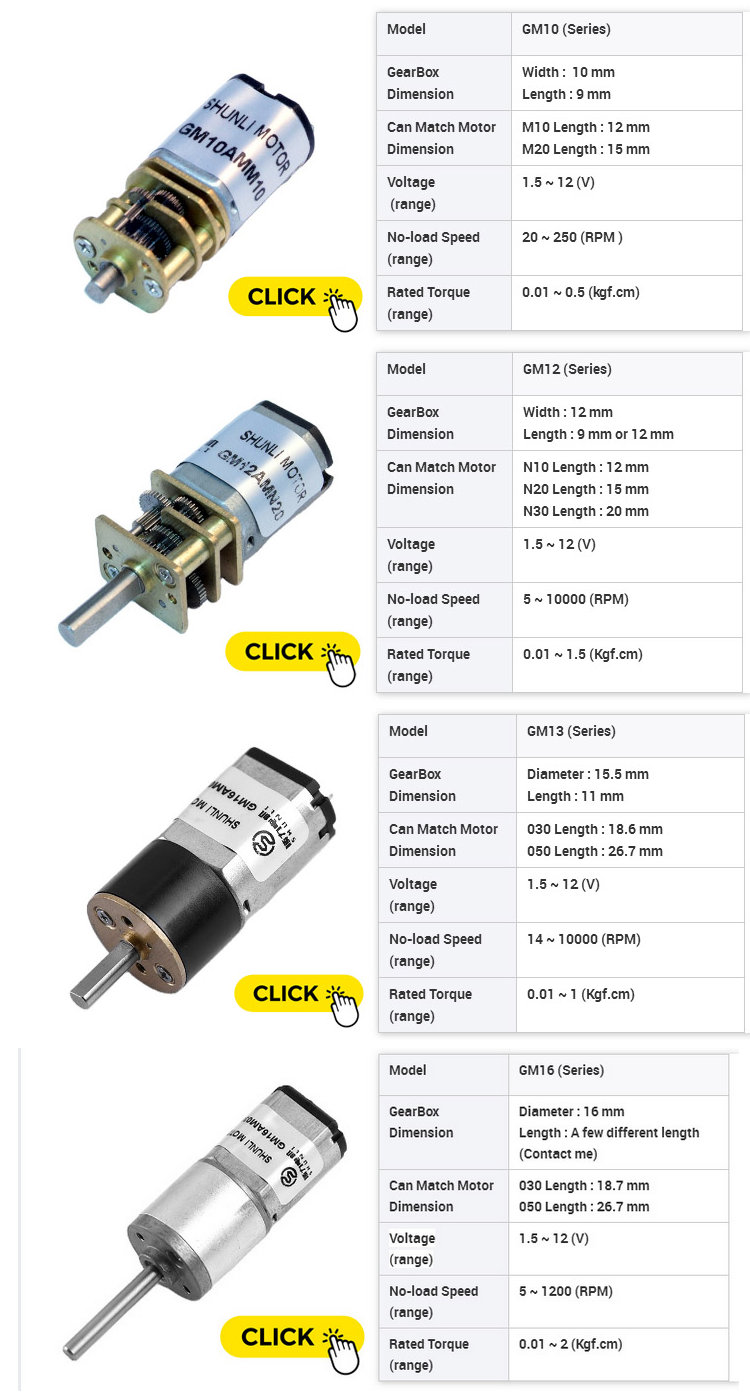

Motor Customized Specification
Motor Customized Specification
Reference Drawing

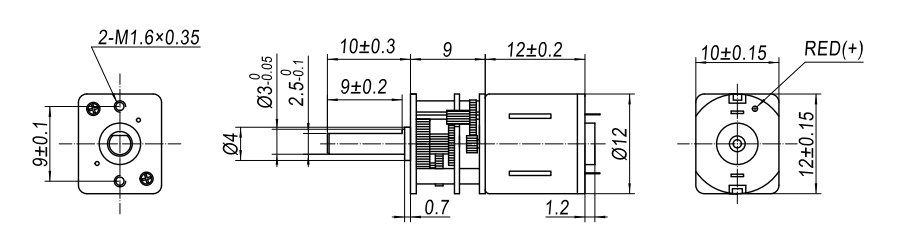

------GM12AMN10
GM12AMN10

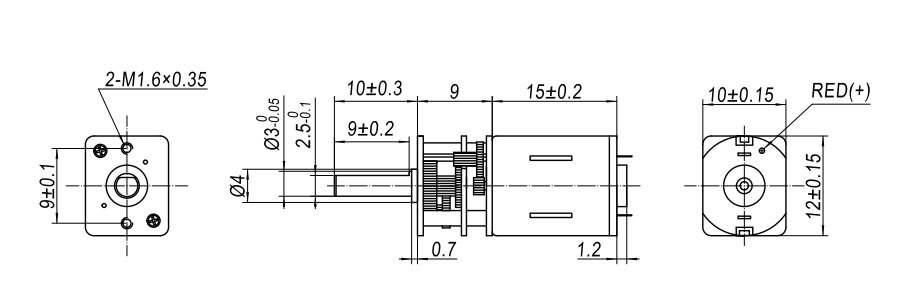

-----GM12AMN20

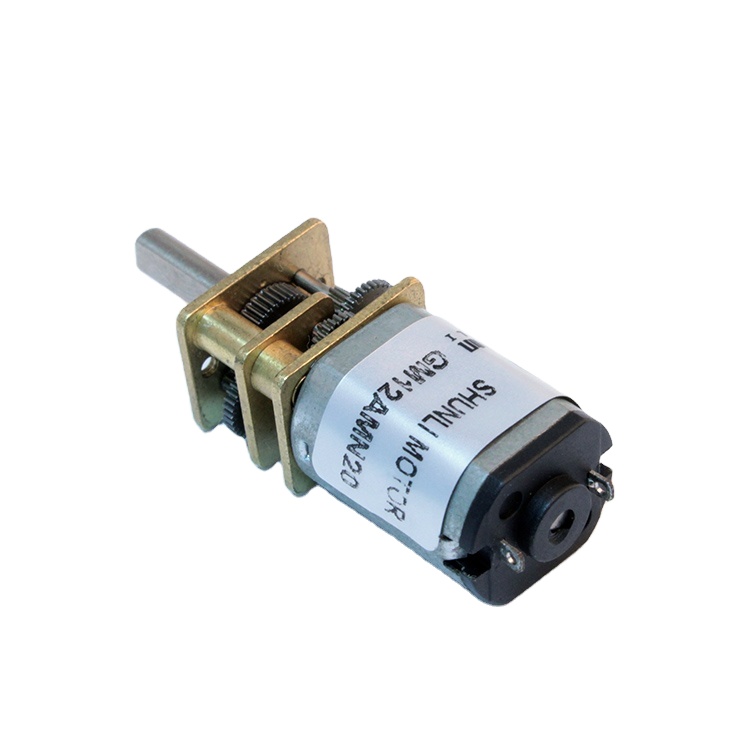

GM12AMN20

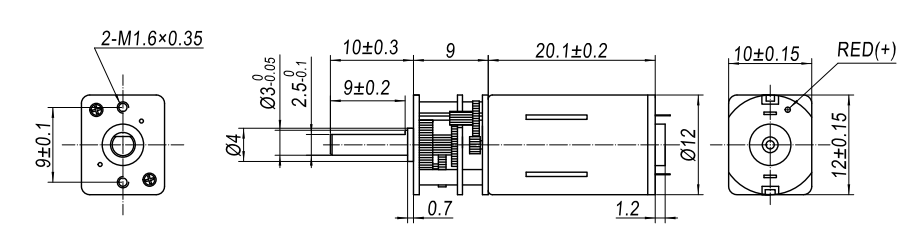

-----GM12AMN30
GM12AMN30

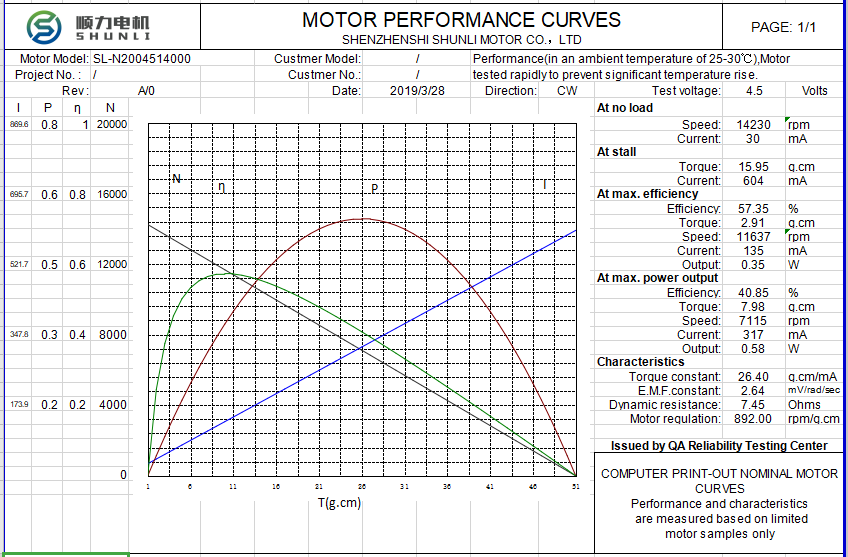

Dimensions
Reference Datasheet
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed Current Speed Current Torque Current Torque
RPM mA RPM mA mN.m / gf.cm mA mN.m / gf.cm
GM12AMN10-298K 1 : 298 4.5~6VDC 70 ≤ 80 55 ≤ 285 5.5/55 ≤ 700 210/2100
GM12AMN20-150K 1 : 150 92 ≤ 55 80 ≤ 140 2.8/28 ≤ 700 120/1200
GM12AMN30-10K 1 : 10 2500 ≤ 60 2200 ≤ 195 4.0/40 ≤ 400 26/260
Gearbox Technical Data
Number of stages 2 4 5 7
Gearbox Length “L”(mm) 9.0 9.0 9.0 12.1
Ratio 3K / 5K / 10K 17K/20K/30K/36K/50K/63K/100K 110K/150K/210K/250K/298K/380K 372K/625K/1000K
Max. Rated Torque 200 gf.cm 600 gf.cm 1000 gf.cm 1500 gf.cm
Max. Gear Breaked Torque 600 gf.cm 1500 gf.cm 2800 gf.cm 3500 gf.cm
Gearbox Efficiency 80%~90% 65%~70% 55%~60% 45%~50%
Application
Applications
Certifications
Certifications
Customer Evaluation
Customer Evaluation
Why Choose Us
Our Company
We are a factory specialize in producing motors more than 14 years, and we have three factories. Professional R&D team, mature management, and experienced engineers and sales staff will bring you a pleasant shopping experience.
Our Company Factories
Quality Control
In order to confirm quality, from the raw material receipt to final shipment, every step of the way is carefully checked. Quality is the basis of our development.

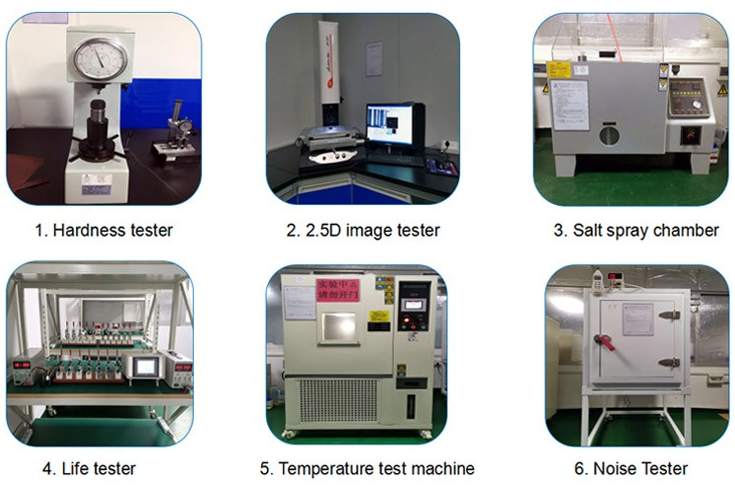

Quality Control Process
Our Services
Credibility Icon
We are gold seller and in possession of high credibility.
Delivery Icon
100% on-time delivery rate confirms your product arrives timely.
Samples Icon
Standard samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.
Reply Icon
Timely reply, your message will be replied within 2 hours.
